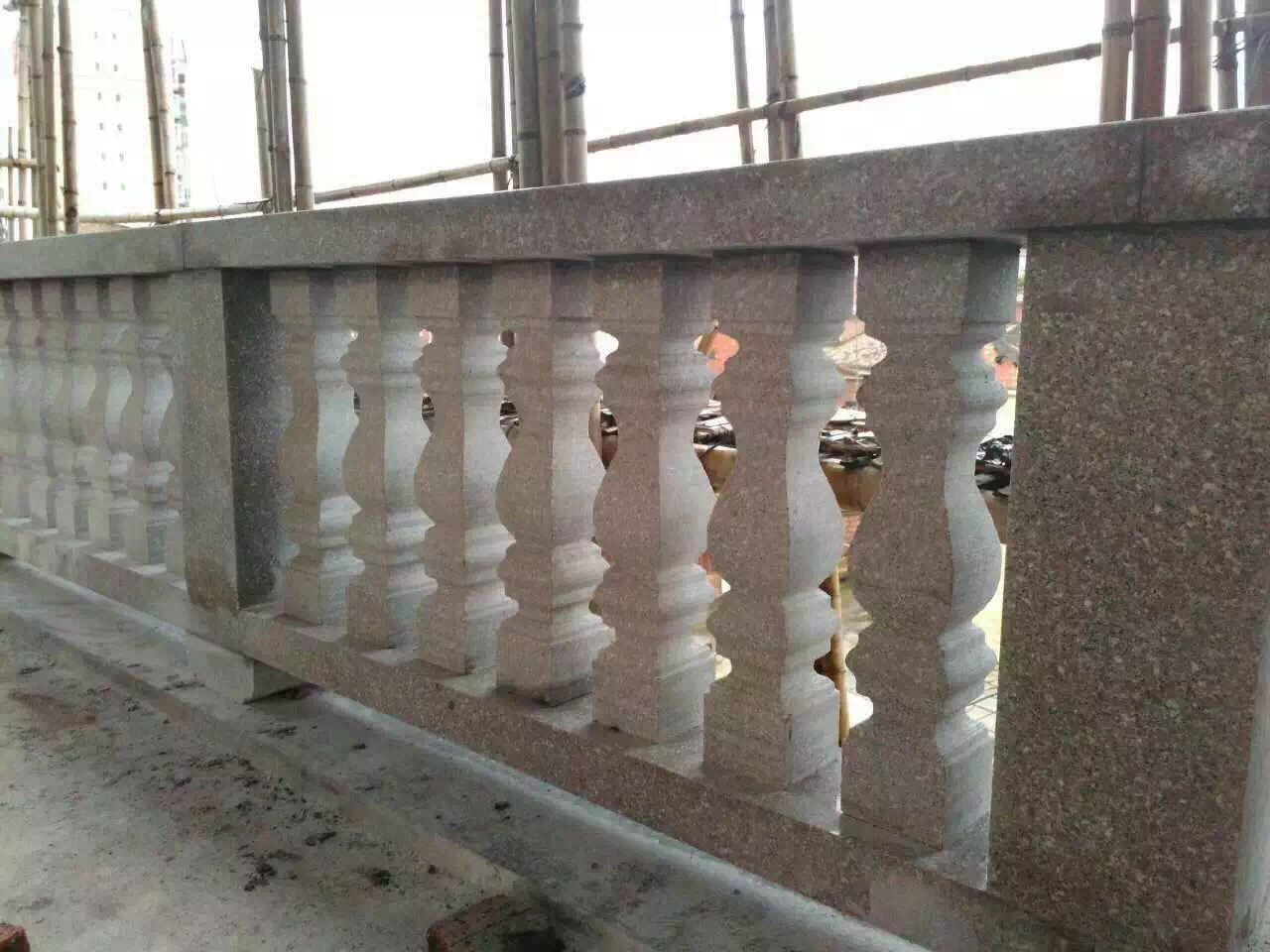

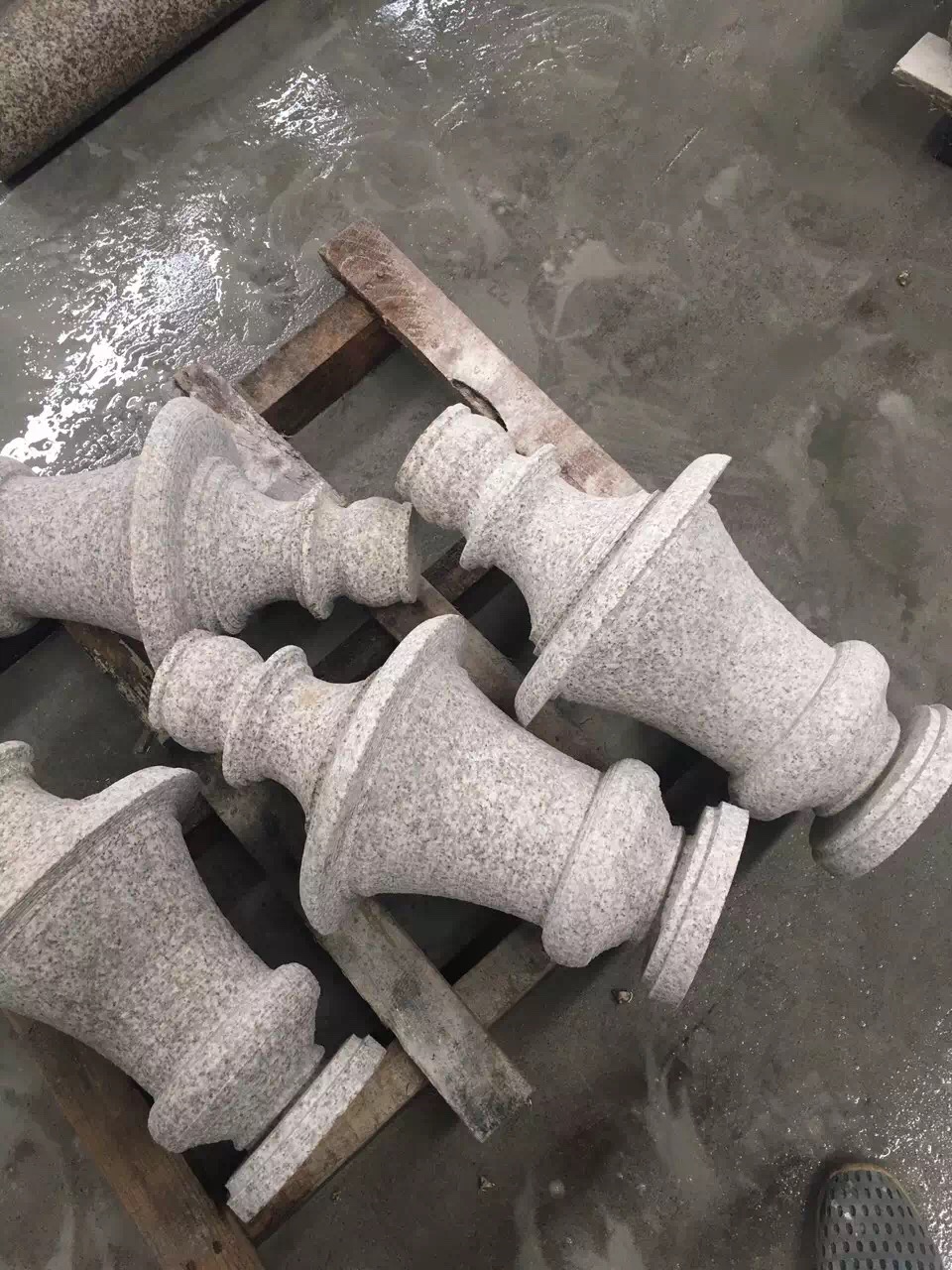

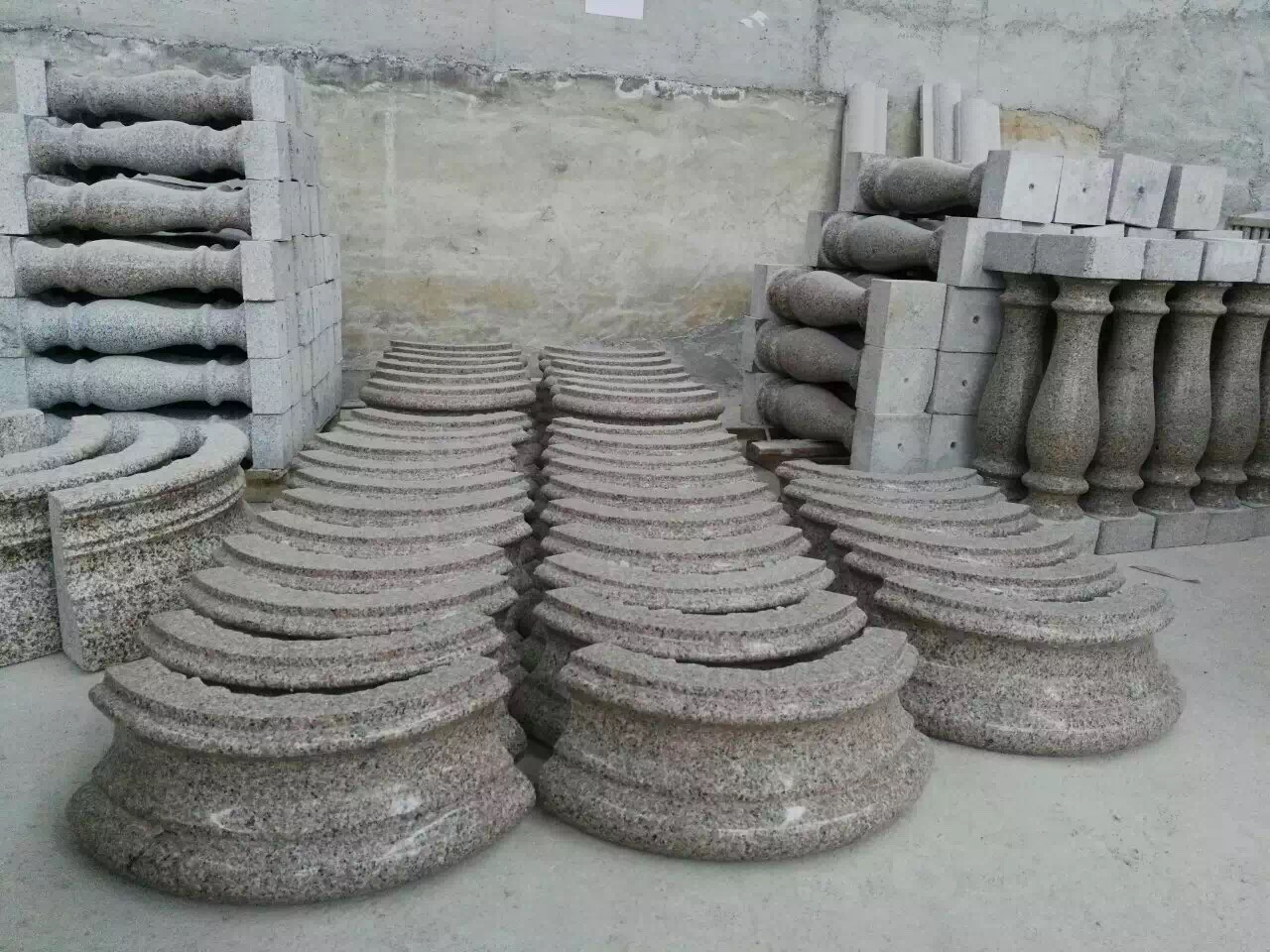

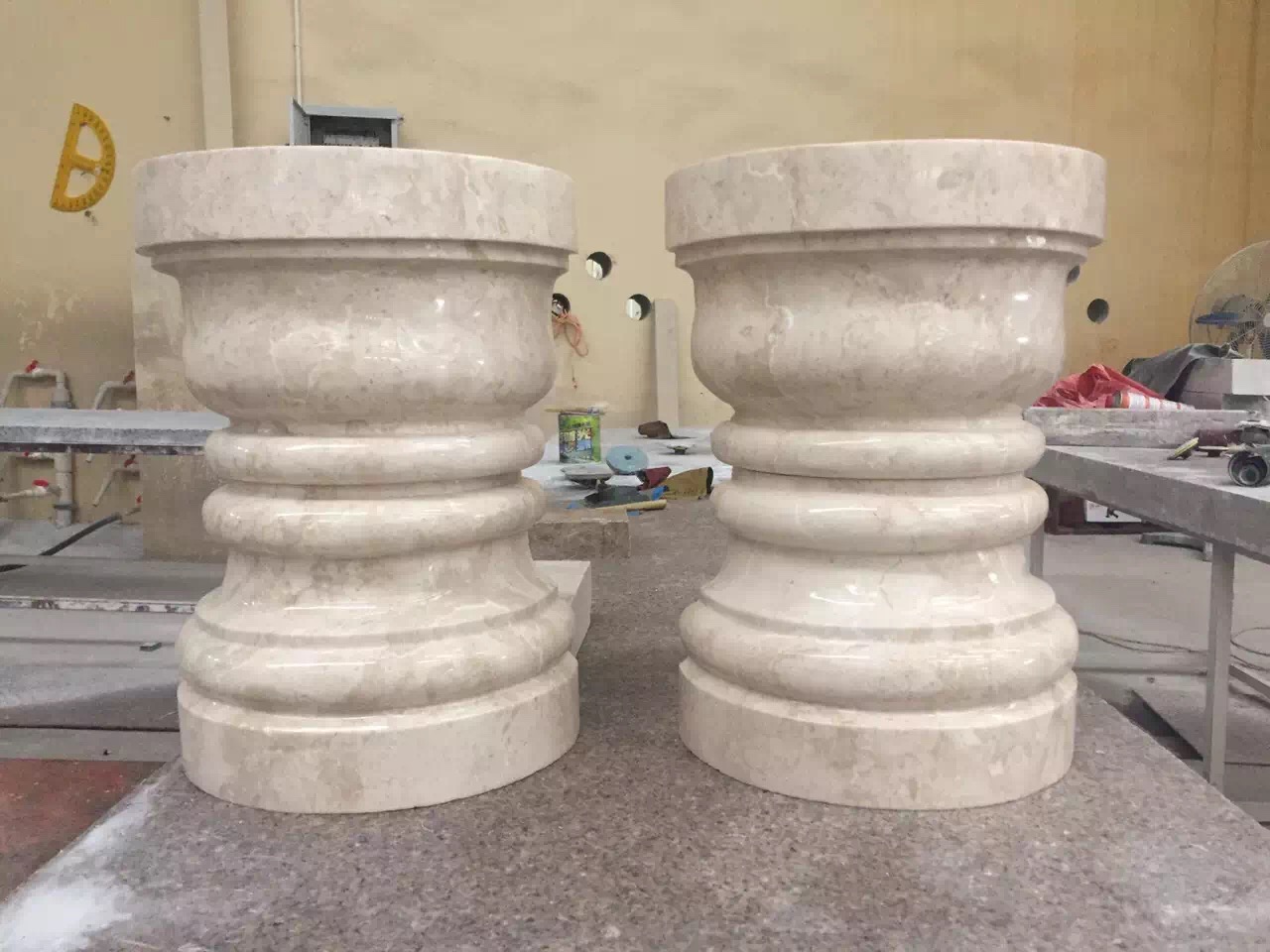

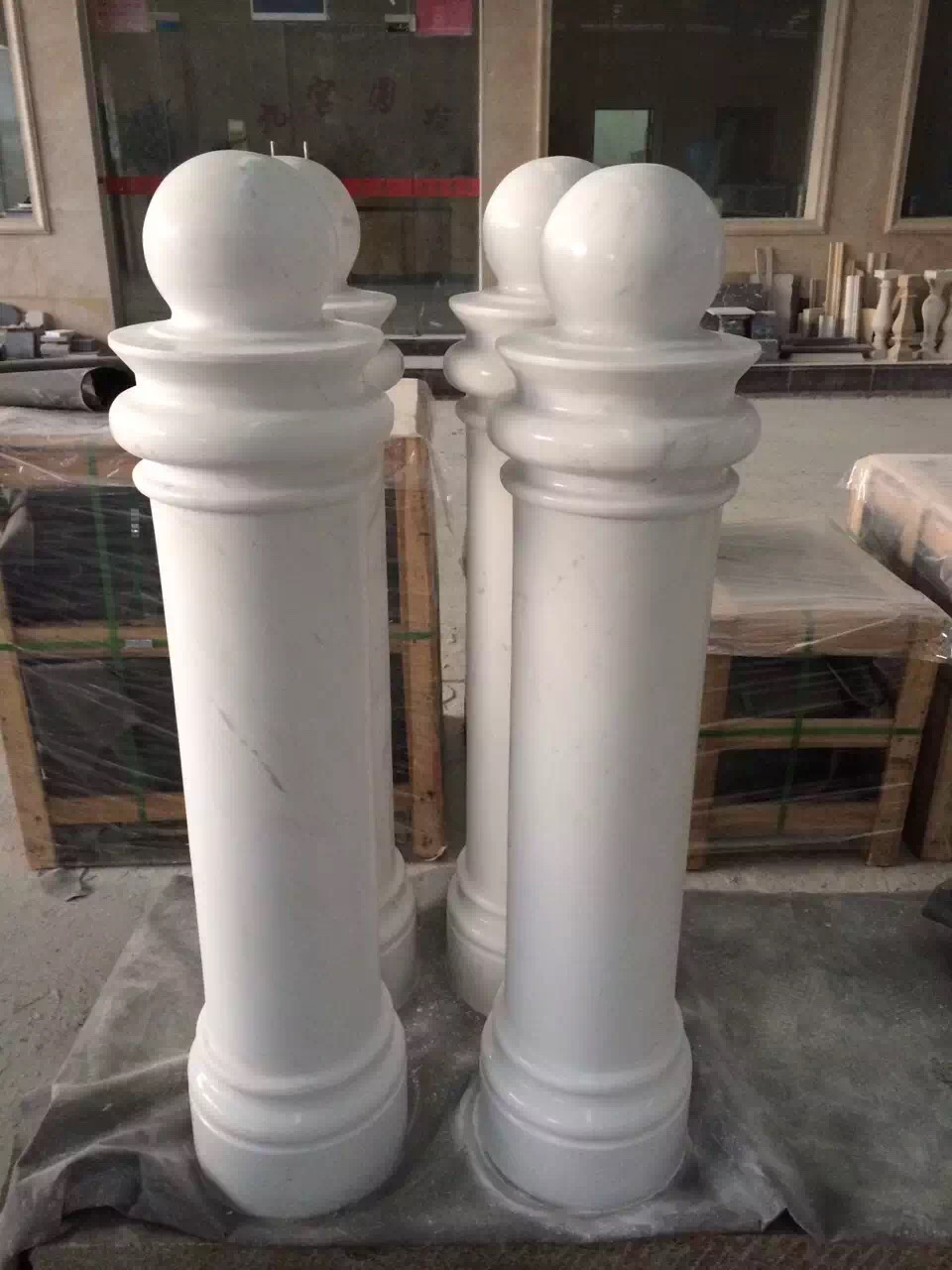

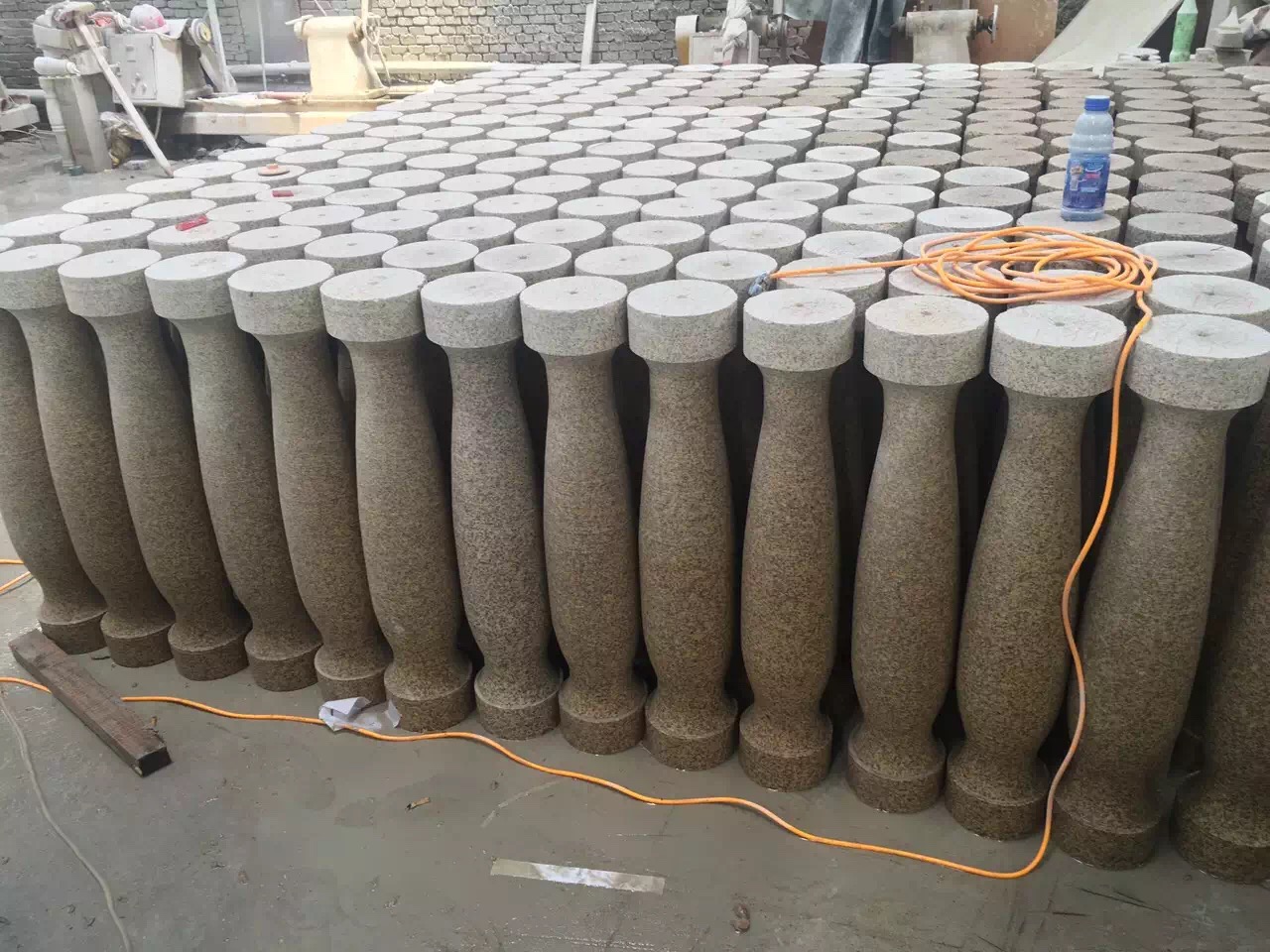

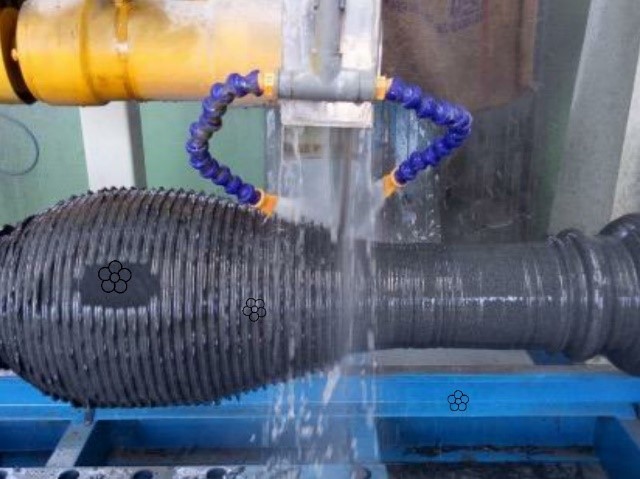

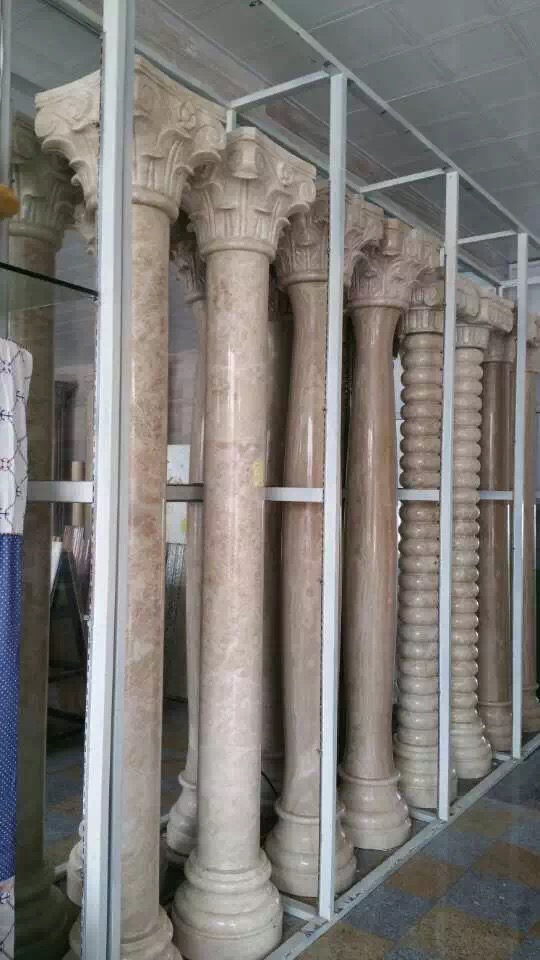

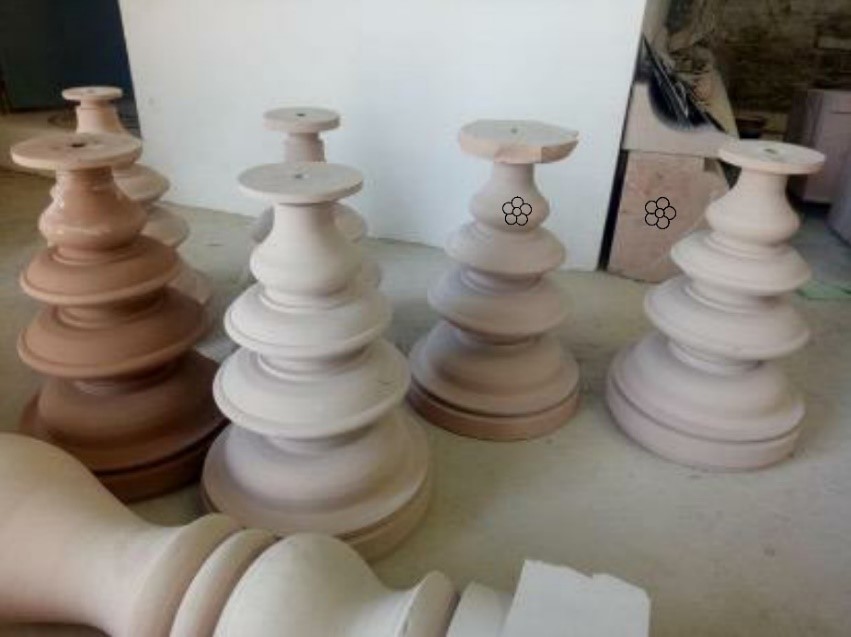

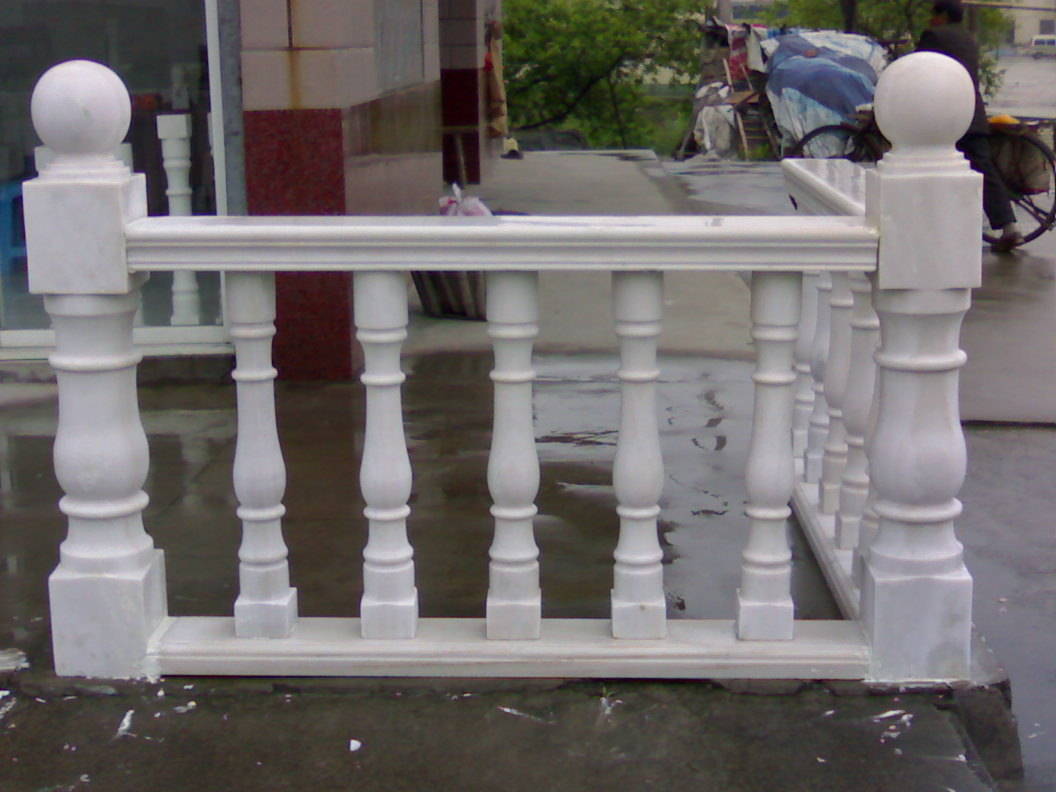

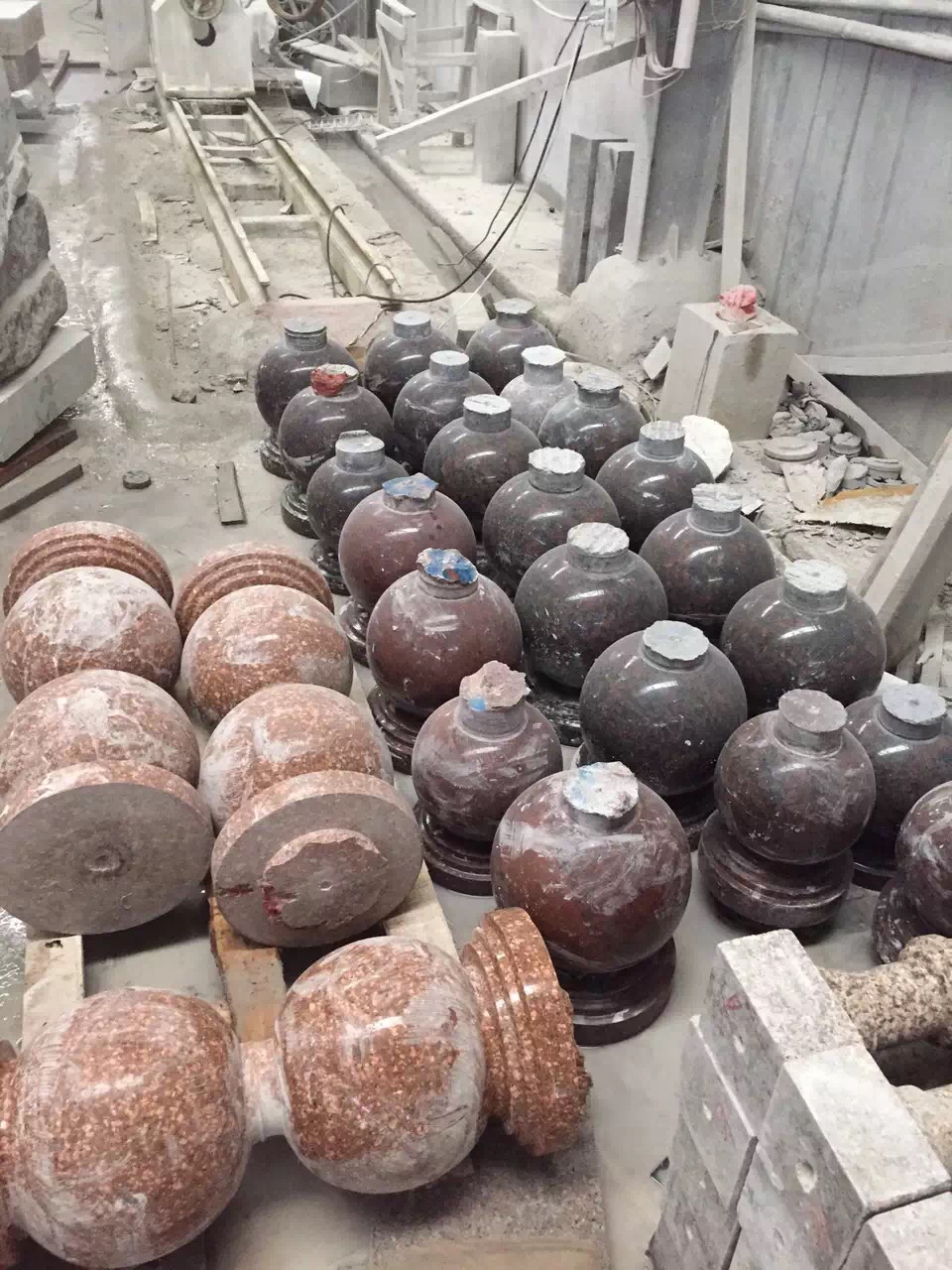

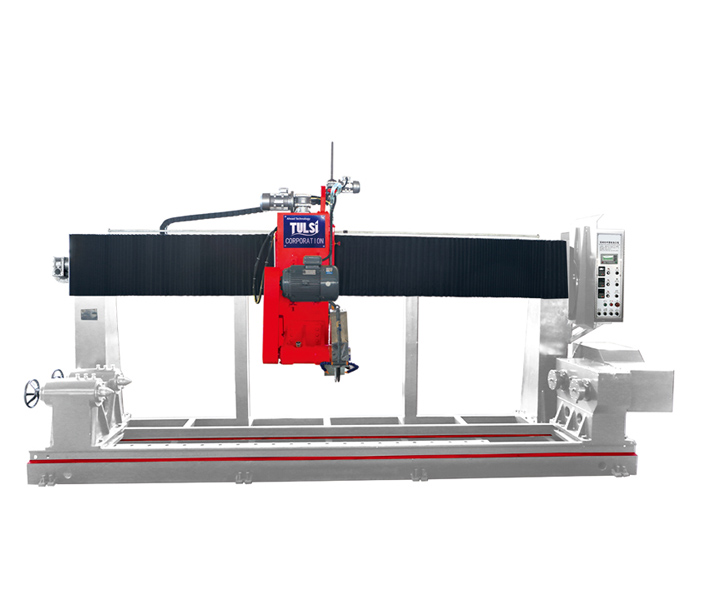

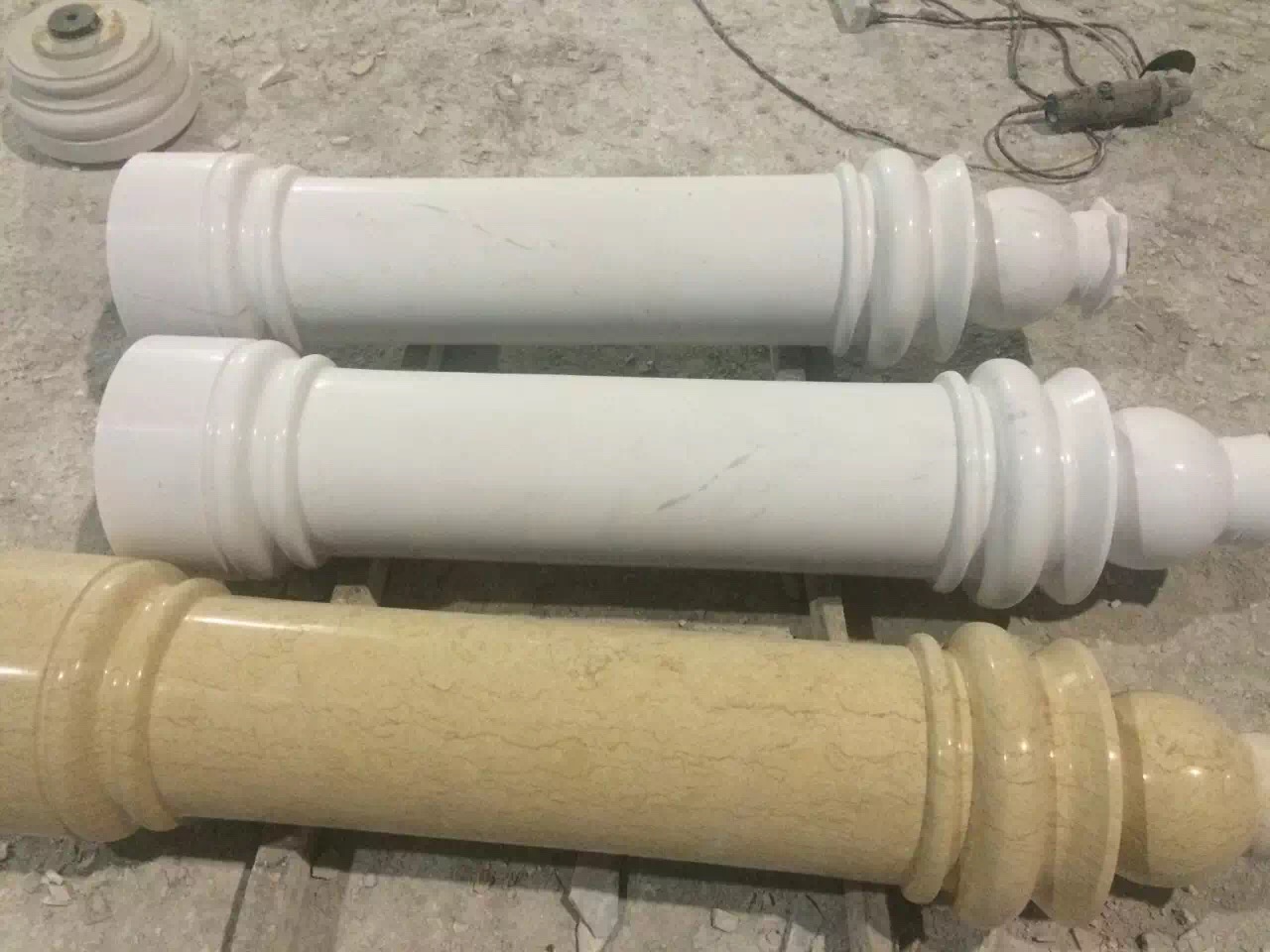

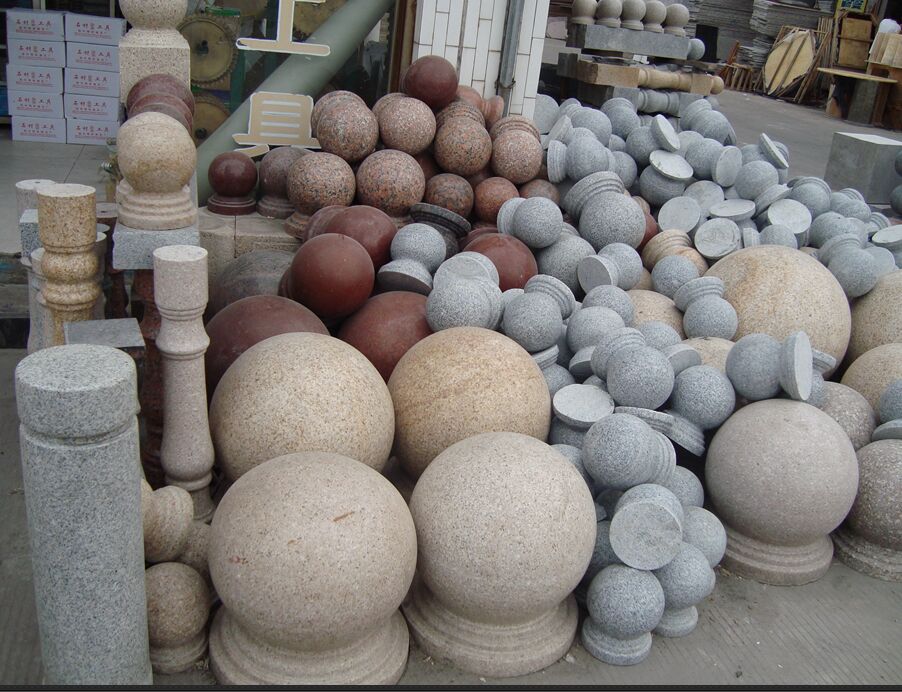

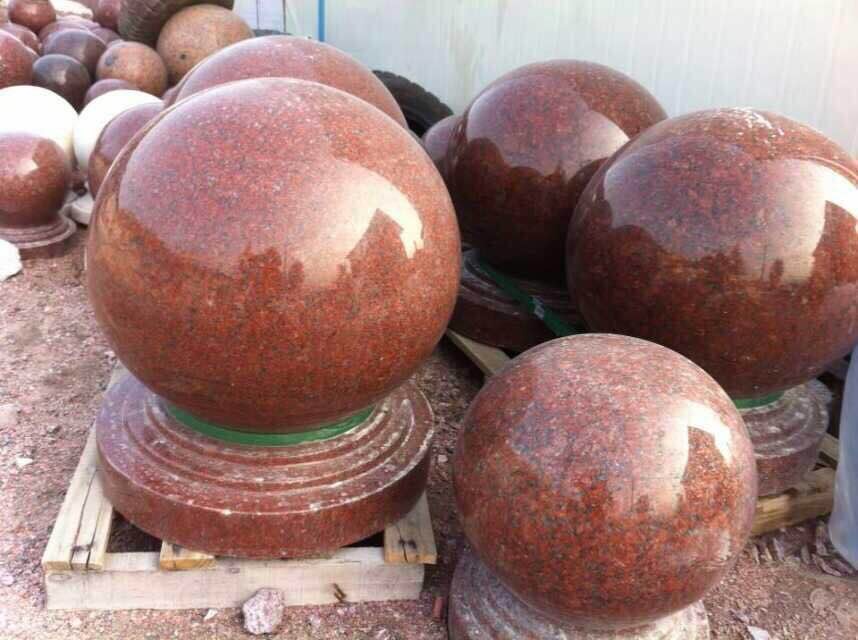

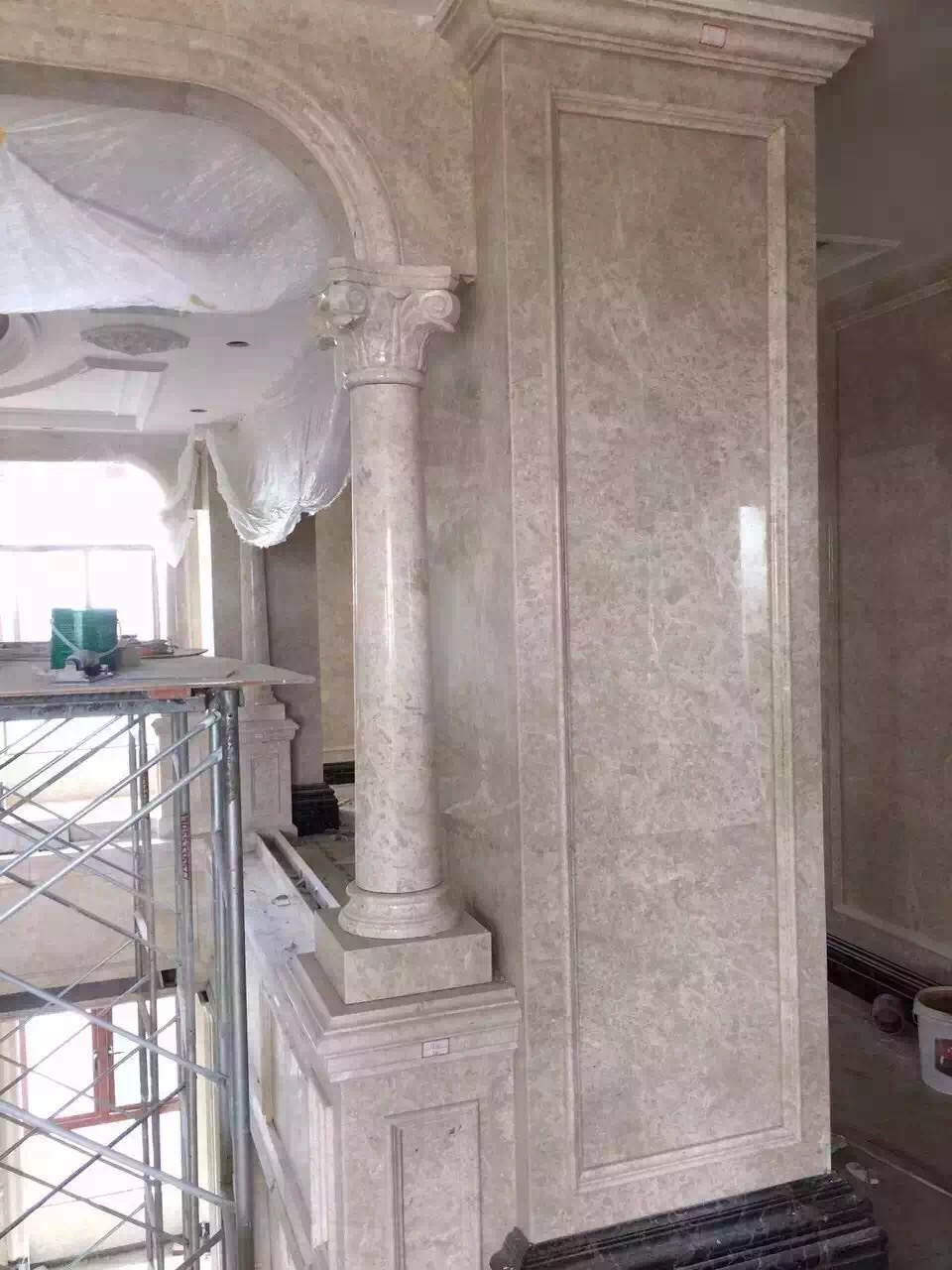

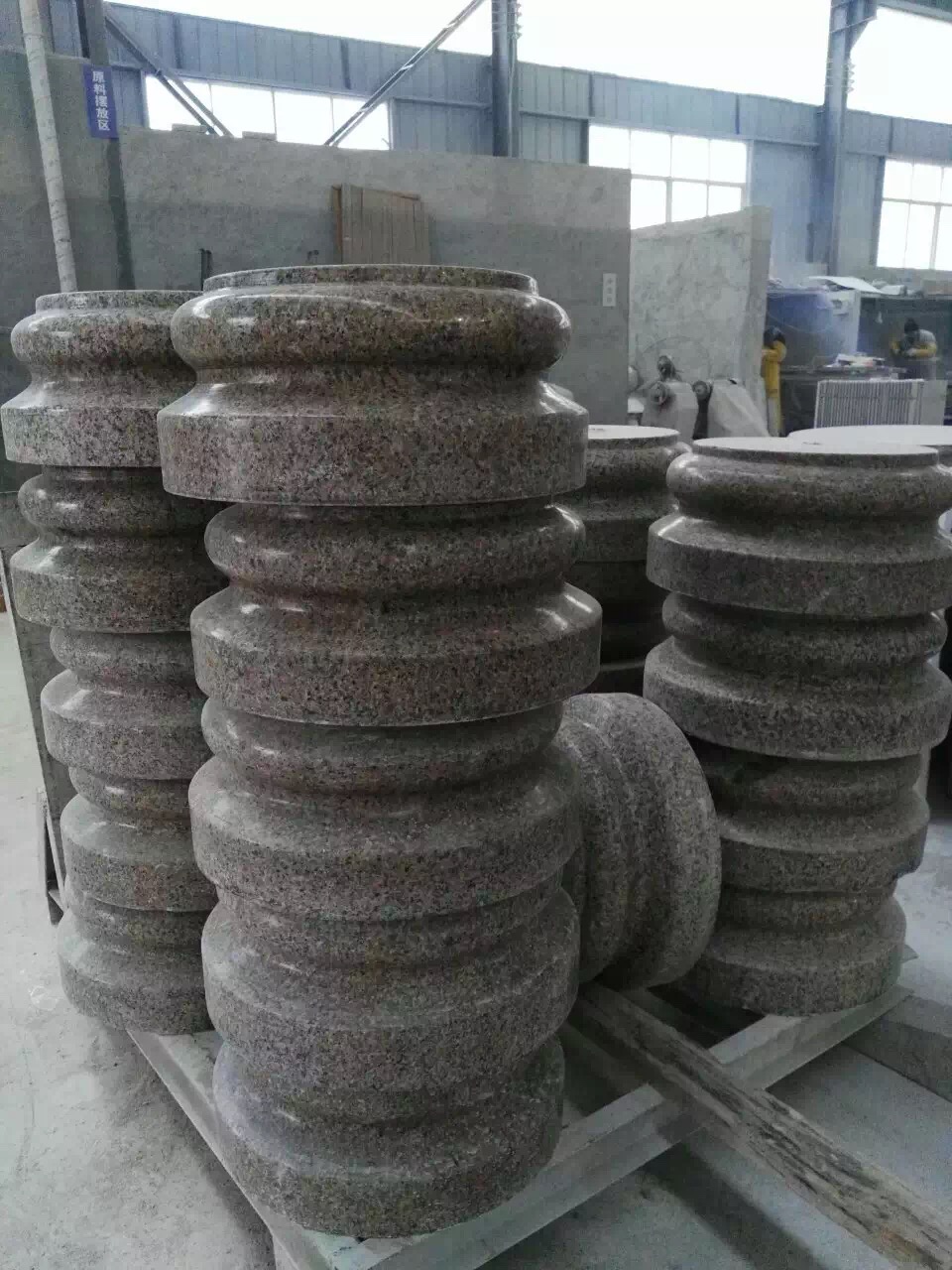

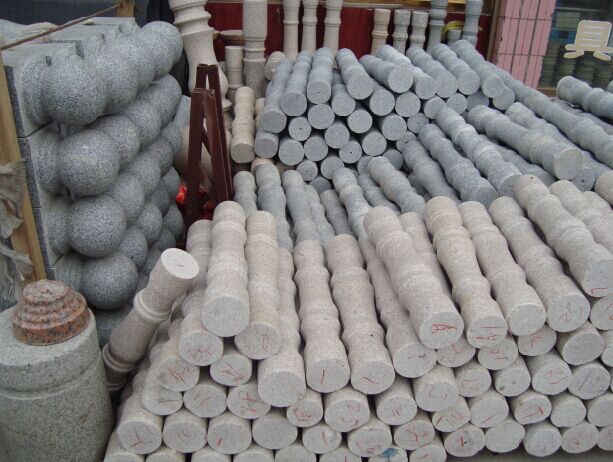

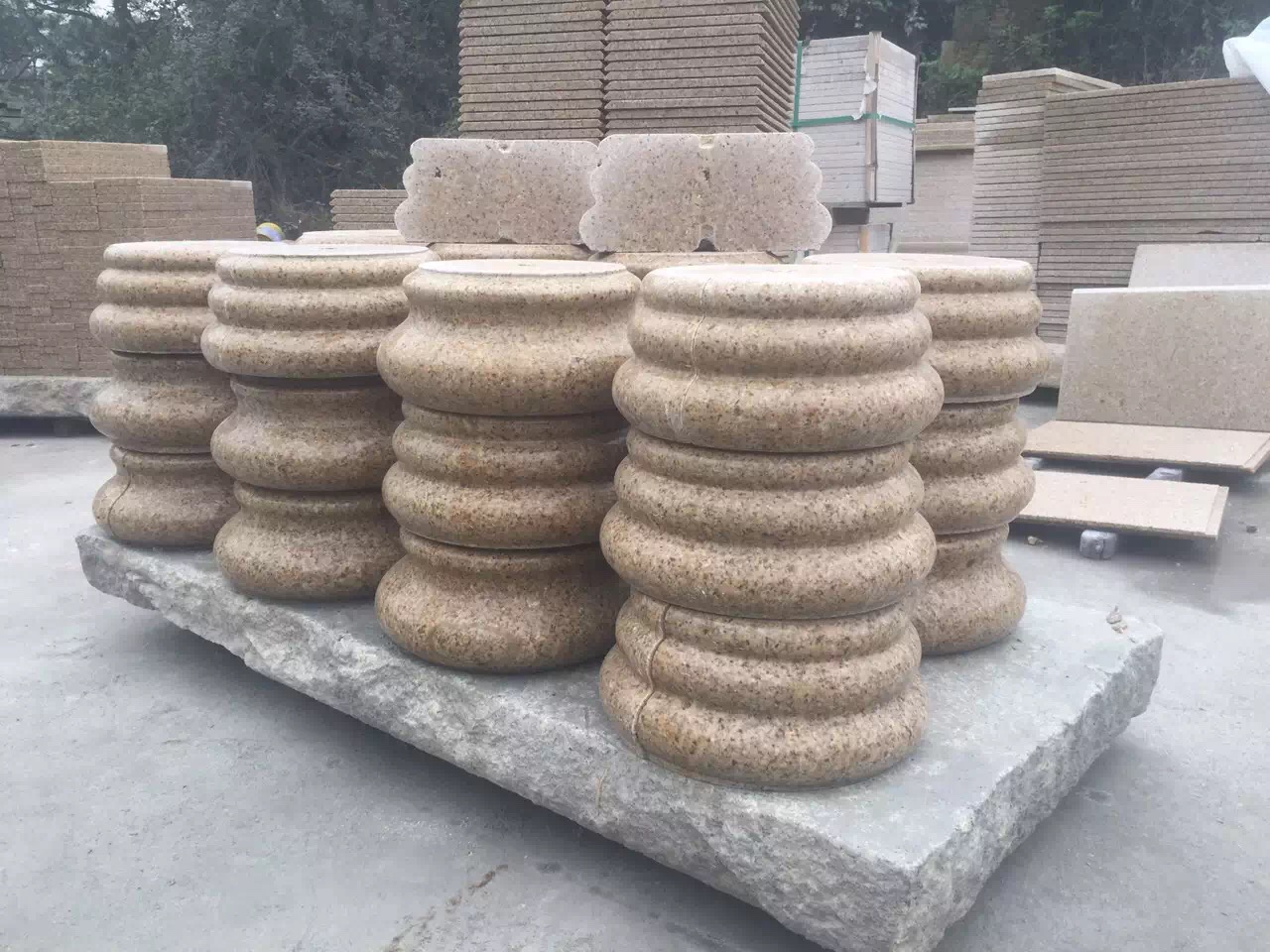

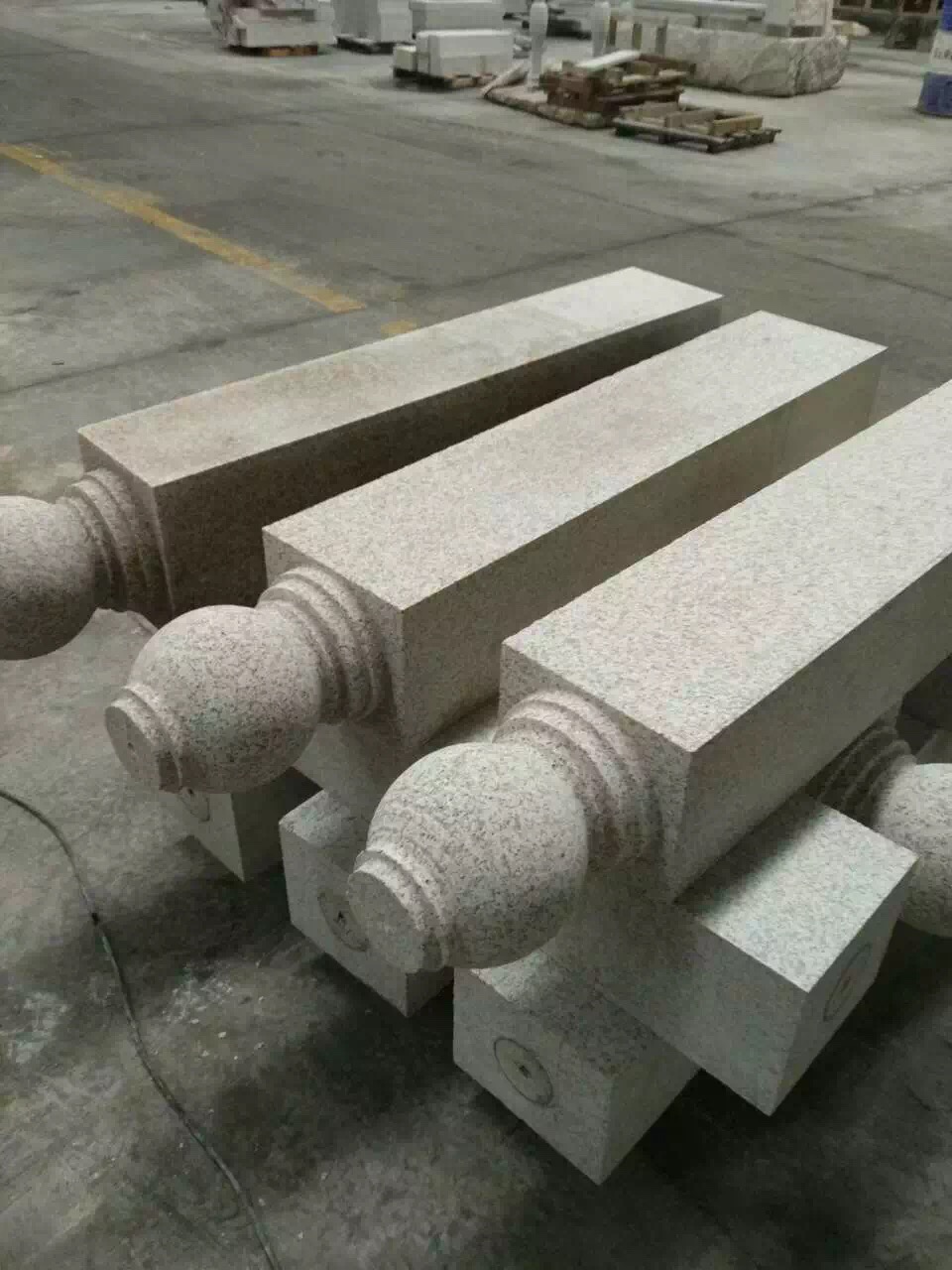

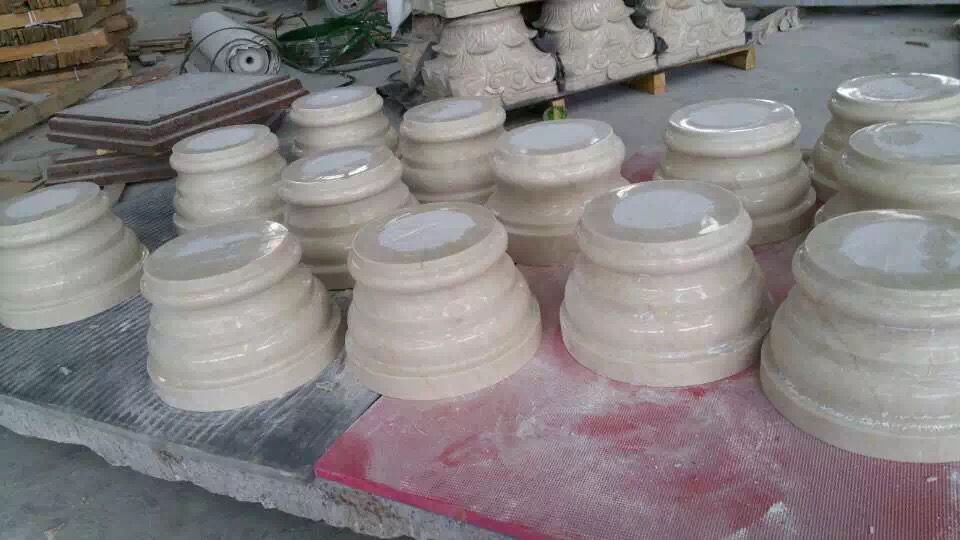

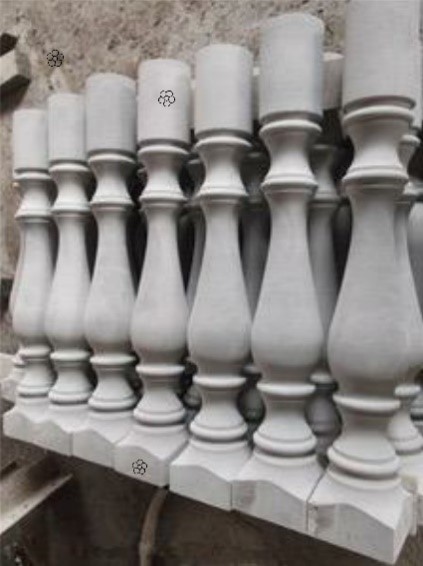

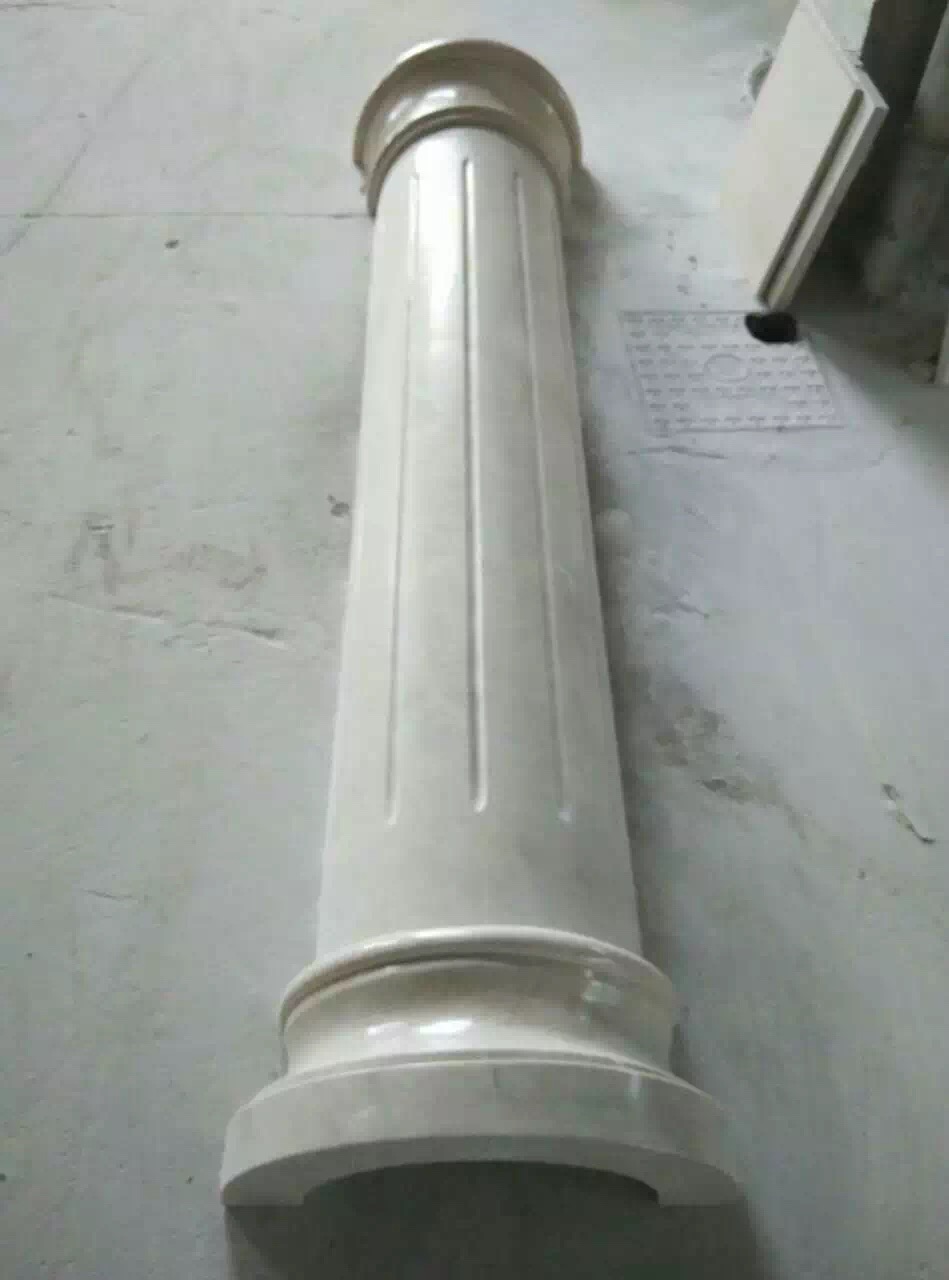

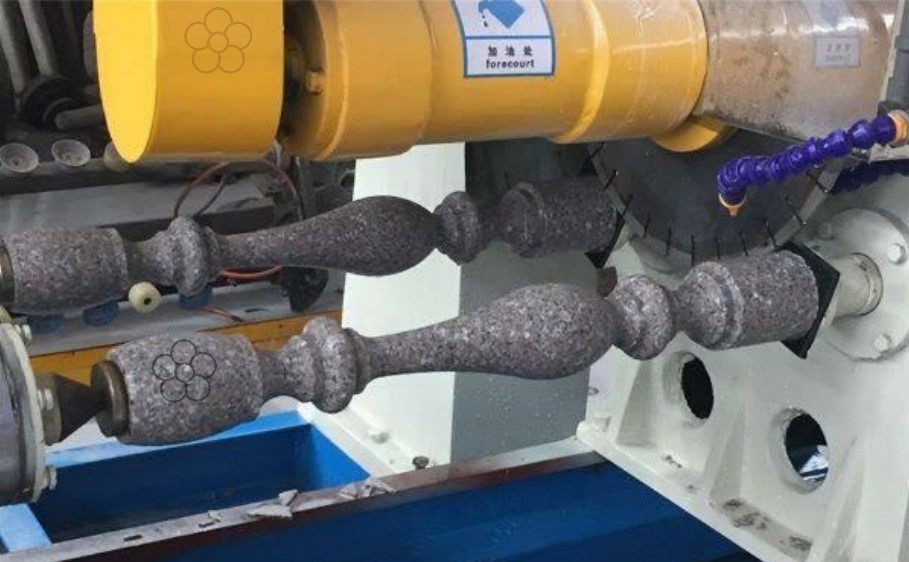

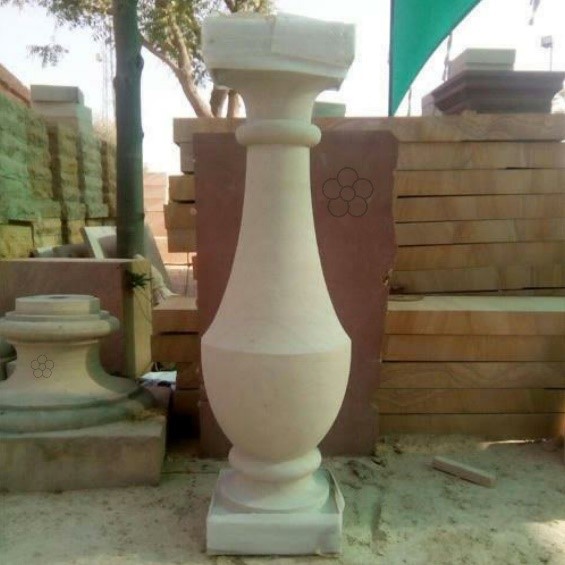

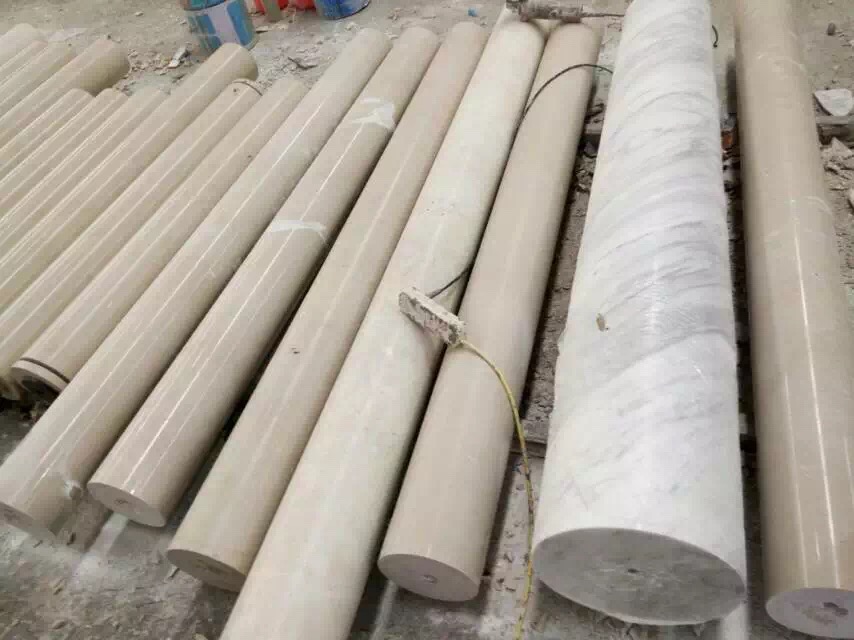

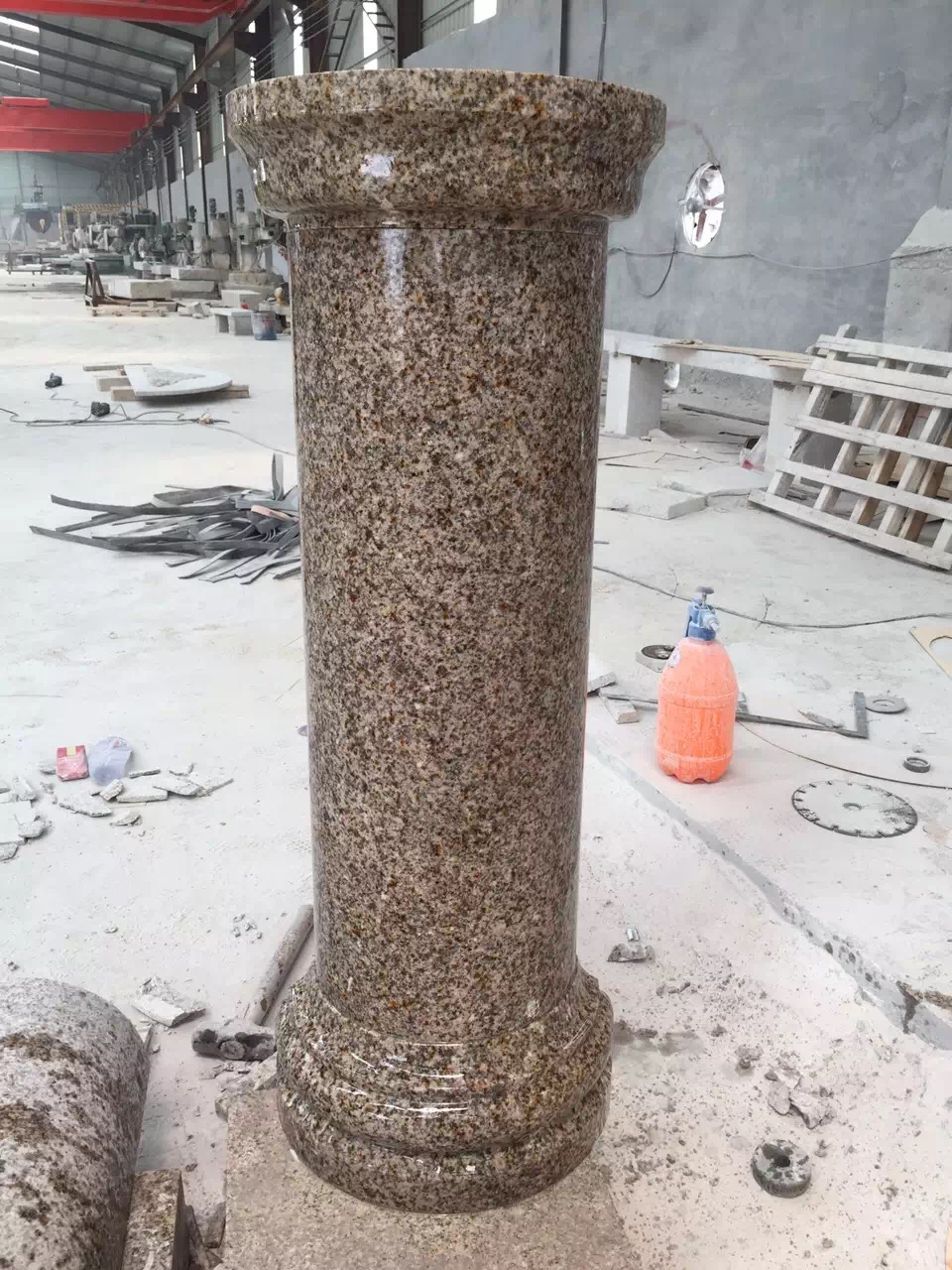

It has CNC / PLC control, the use of profiling probe devices, the probe automatically track (straight) line template, template profiling, dual-axis linkage, gear box with oil – immersed gear structure for better transmission gear and turbine box protection, with high efficiency, high stability, is the ideal equipment for processing different specifications of column , railings, flower pots and other special-shaped Stone ball and stone products.
| Blade Dia | Ø500 mm |
| Max. Processing Dia | Ø230 / 4 pcs , Ø460 / 2 pcs |
| Processing Length | 50 – 1500 mm |
| Main Motor | 15 HP x 2 Motors |
| Overall Dimension [L*W*H] | 3600 x 2000 x 3200 mm |
| Gross Weight | 5500 Kg |
| Gross Power | 38 HP |
| Water Consumption | 6 m3 / H |
| Heavy Duty , Exclusive Machine With Local Service Support And Tools Support | |
It has CNC / PLC control, the use of profiling probe devices is to automatically track (straight) line template, template profiling, dual-axis linkage, gear box with oil-immersed gear structure for better transmission gear and turbine box protection, with high efficiency, high stability, is the ideal equipment for processing different specifications of column , railings, flower pots and other special-shaped stone ball and stone products.
