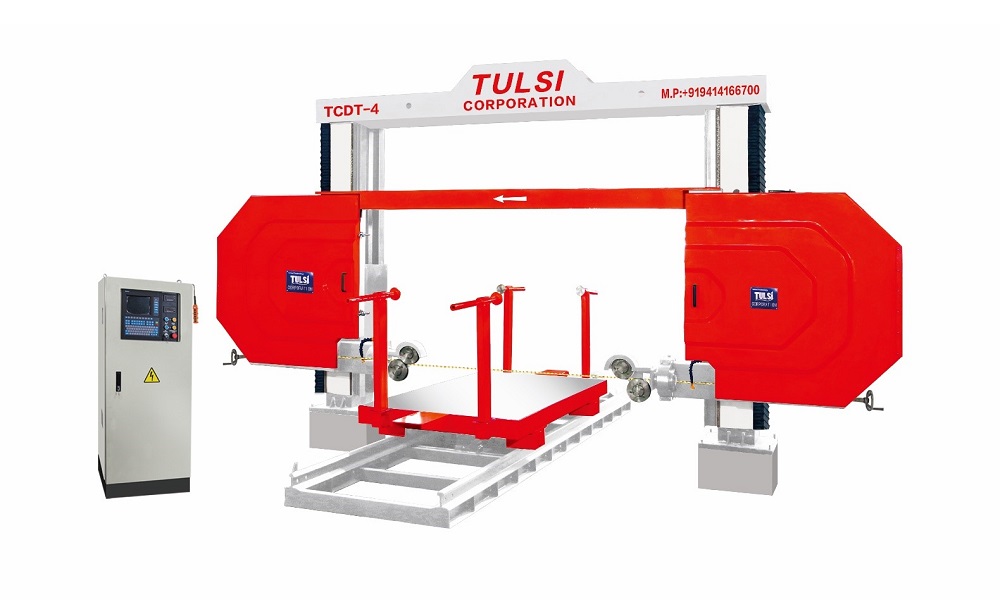

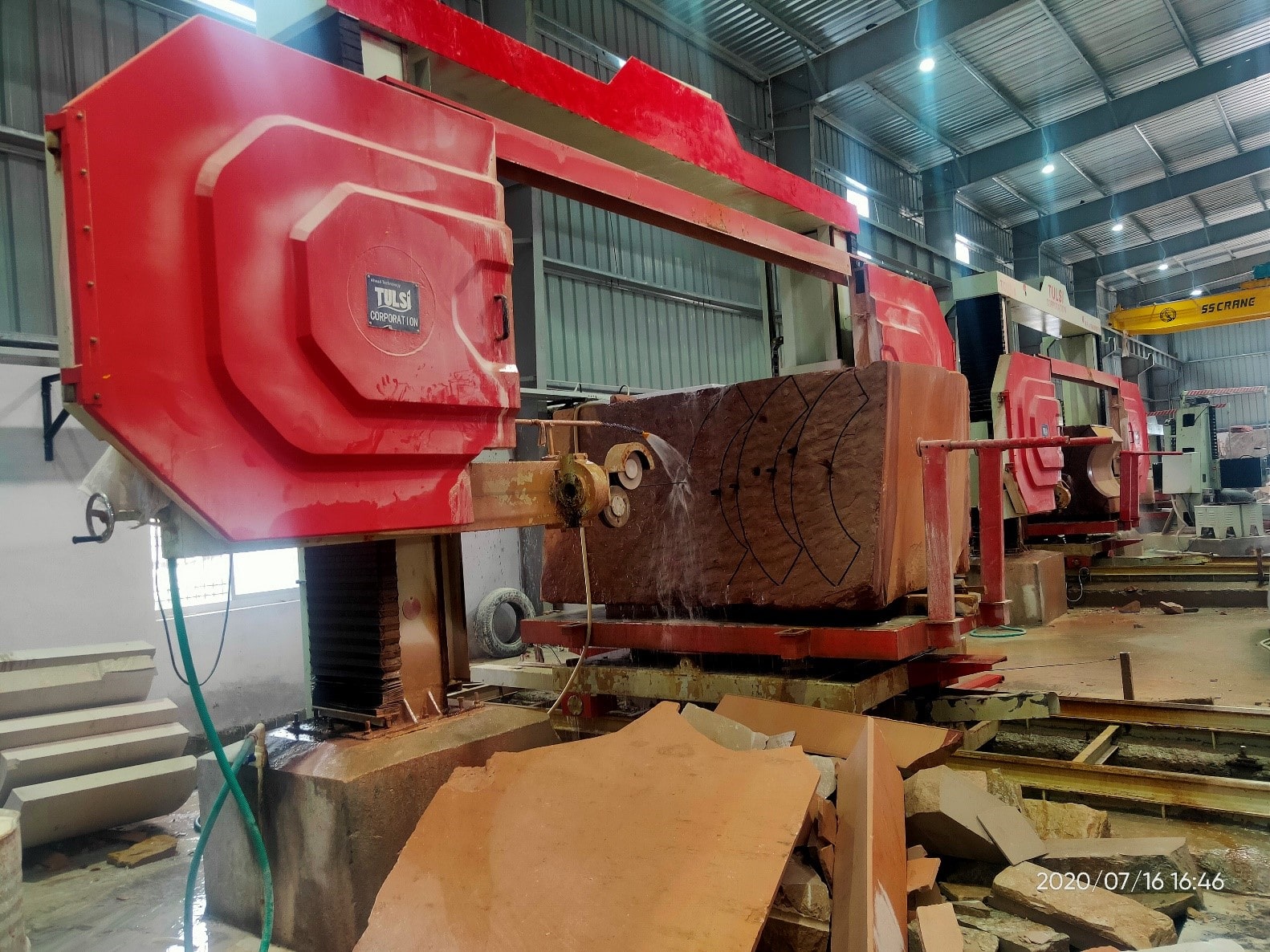

Turbo Cnc Diamond Wire 4 Axis

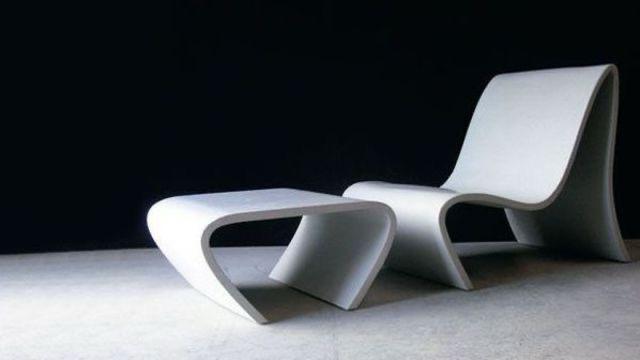

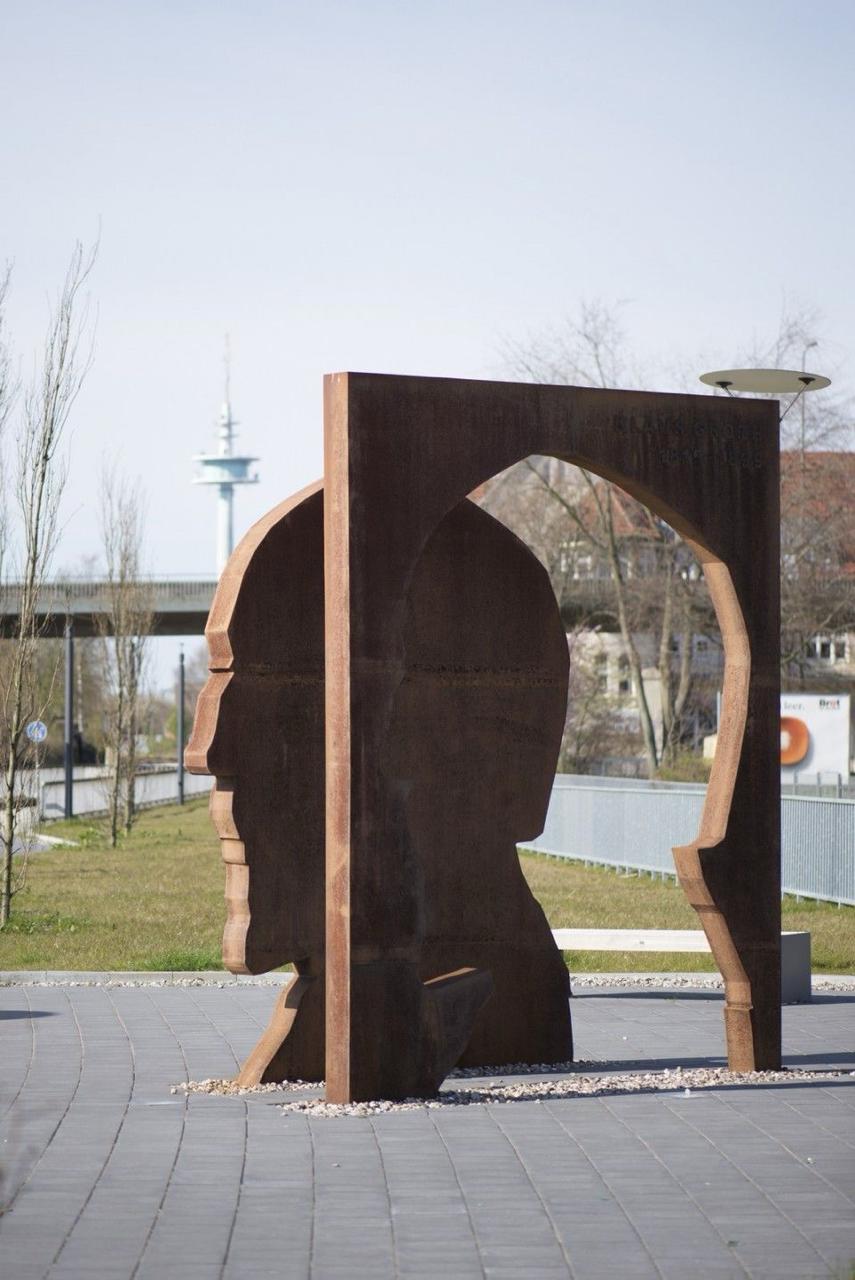

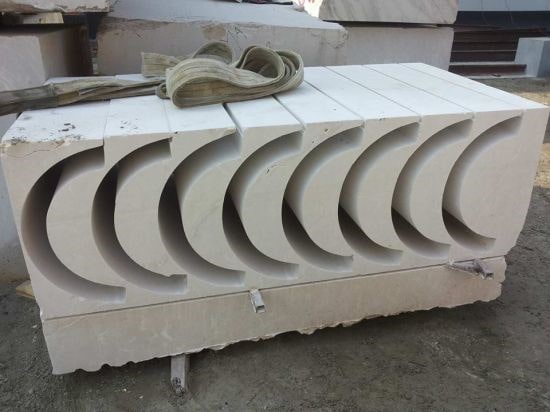

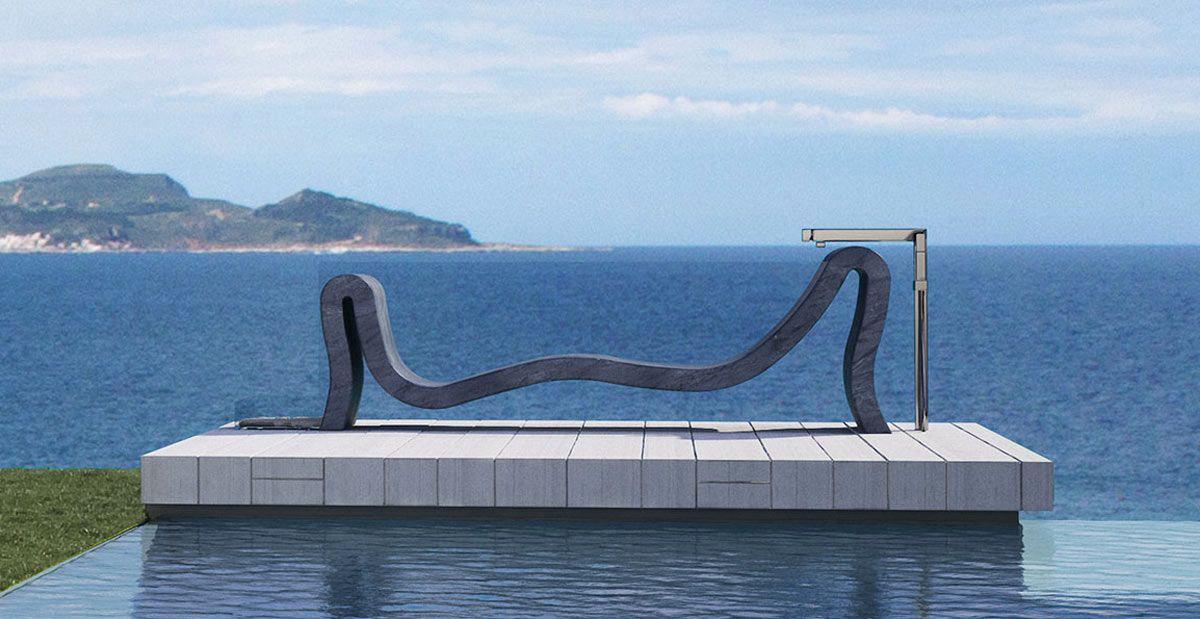

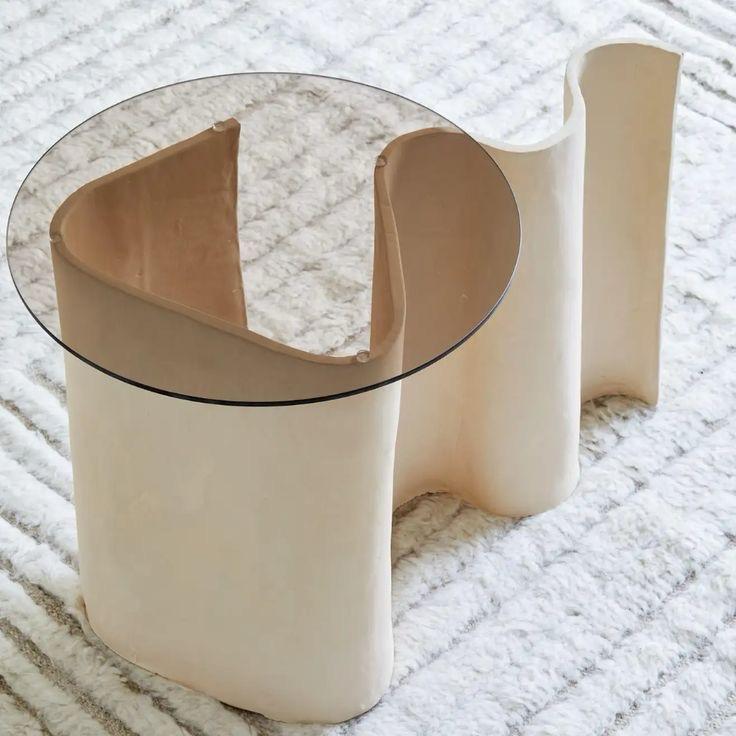

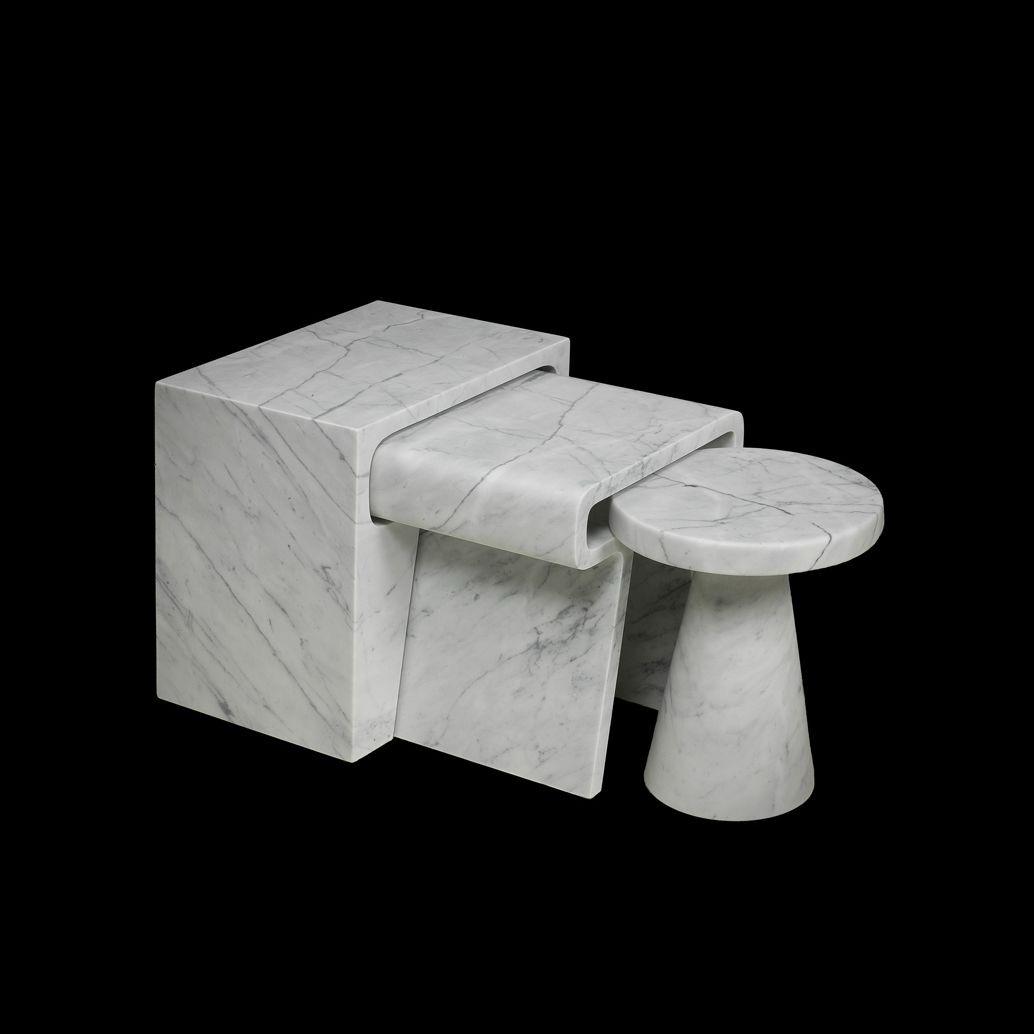

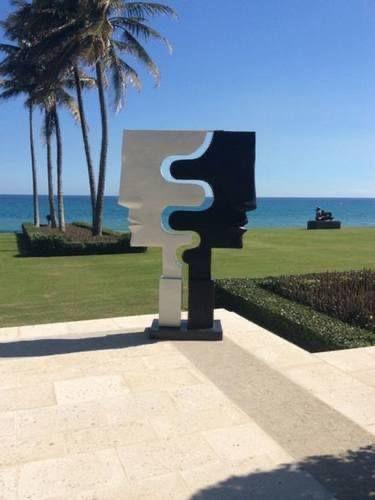

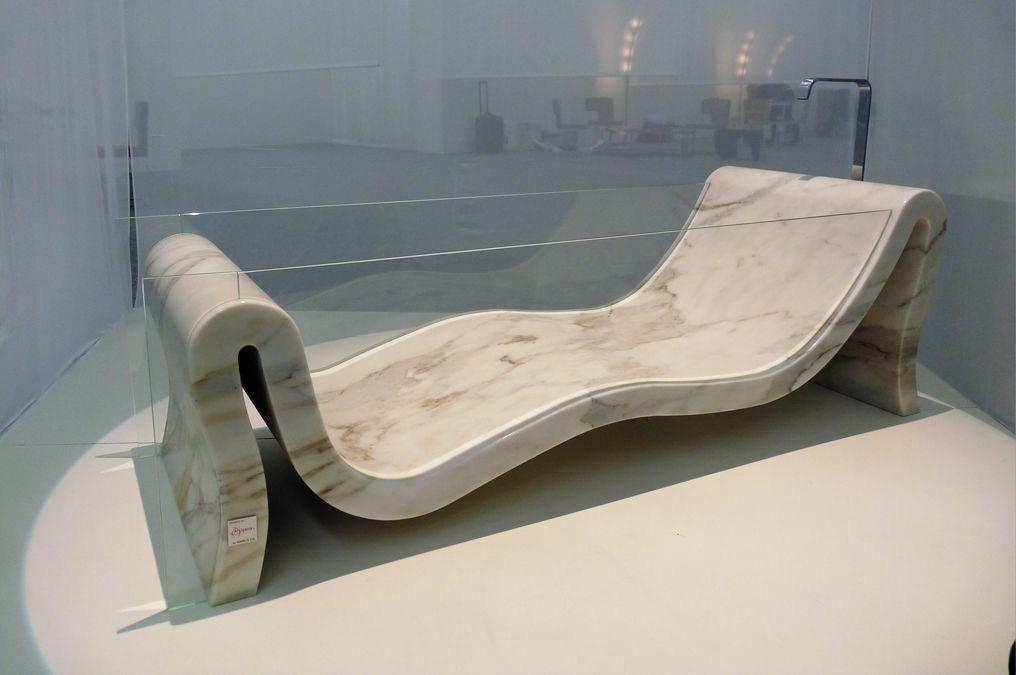

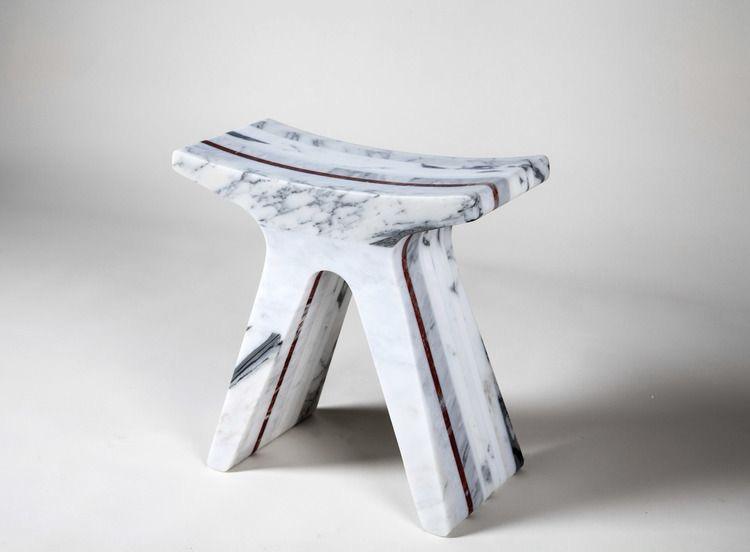

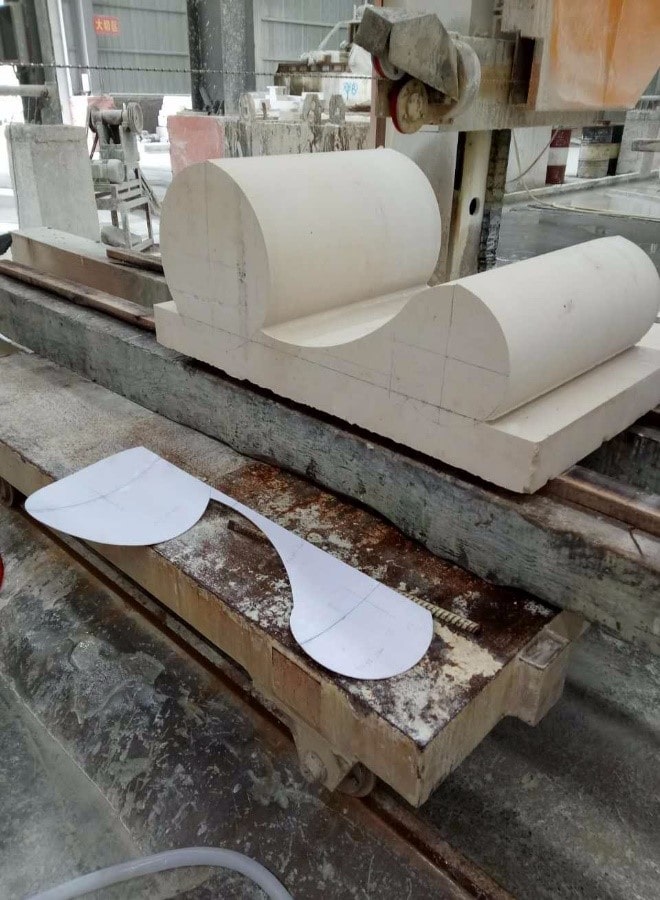

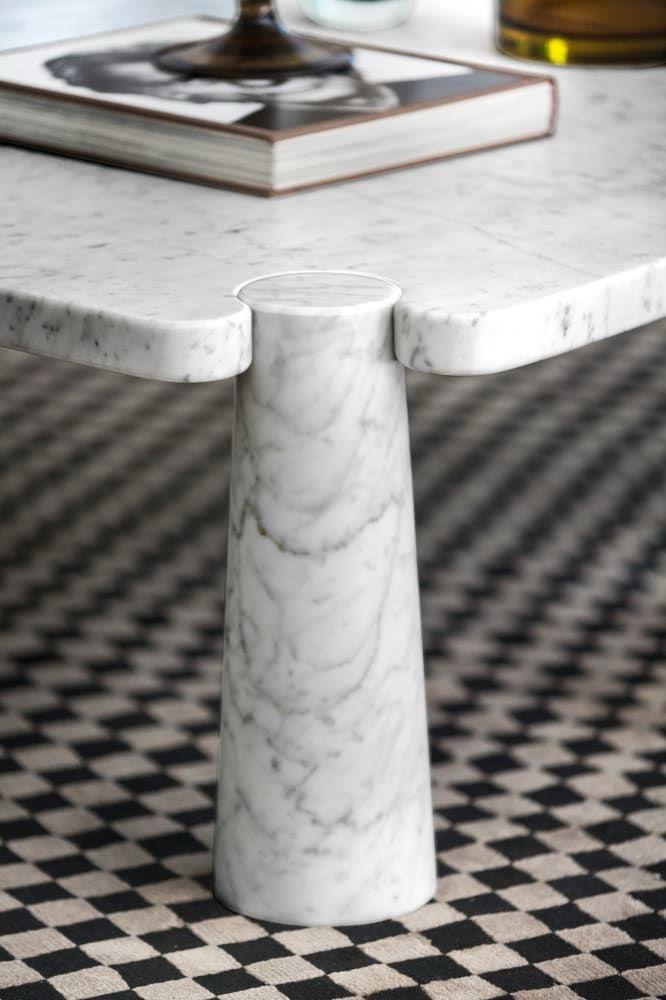

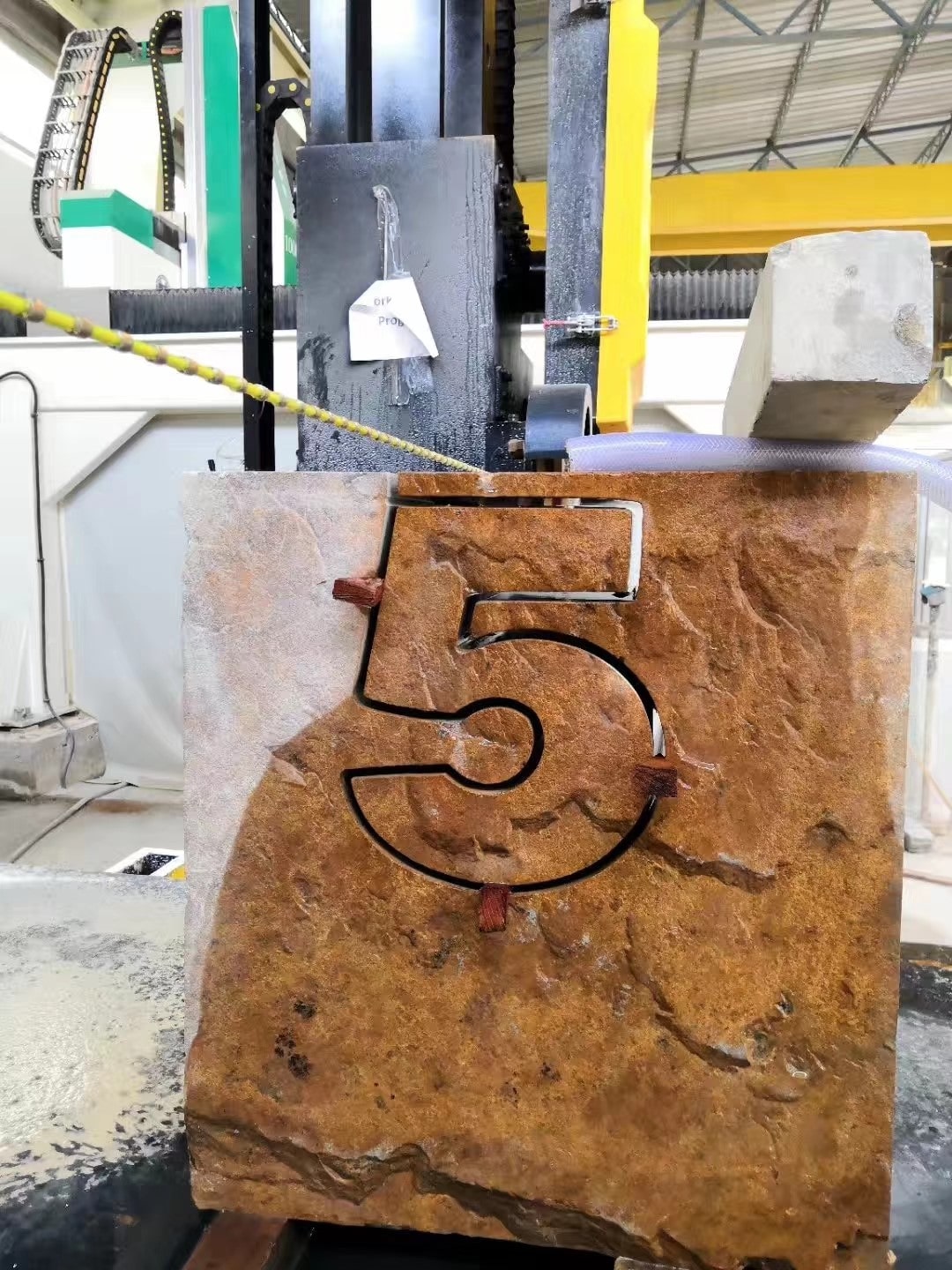

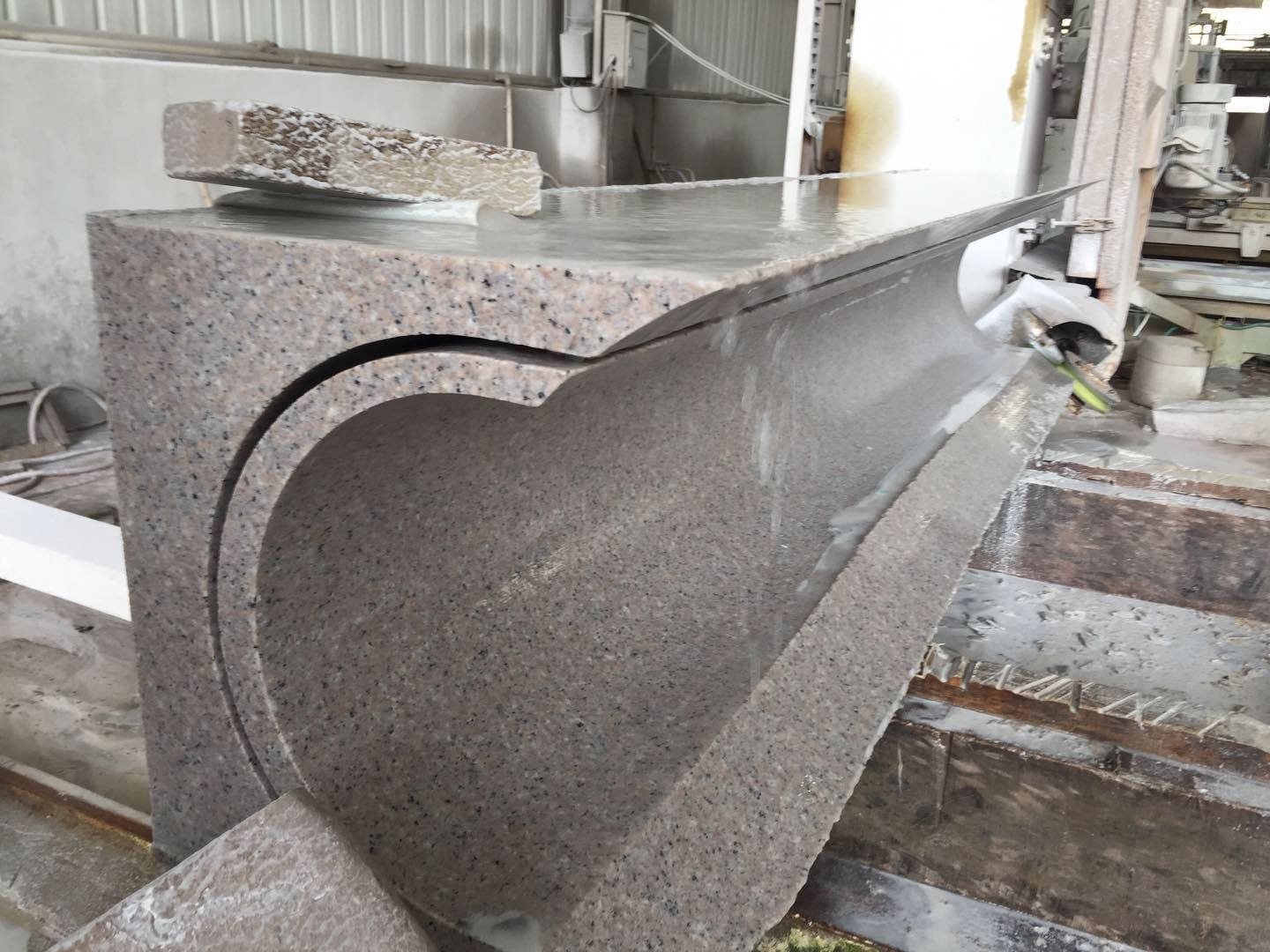

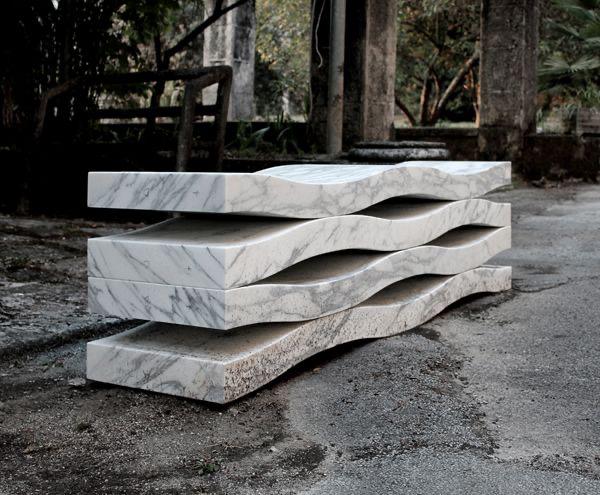

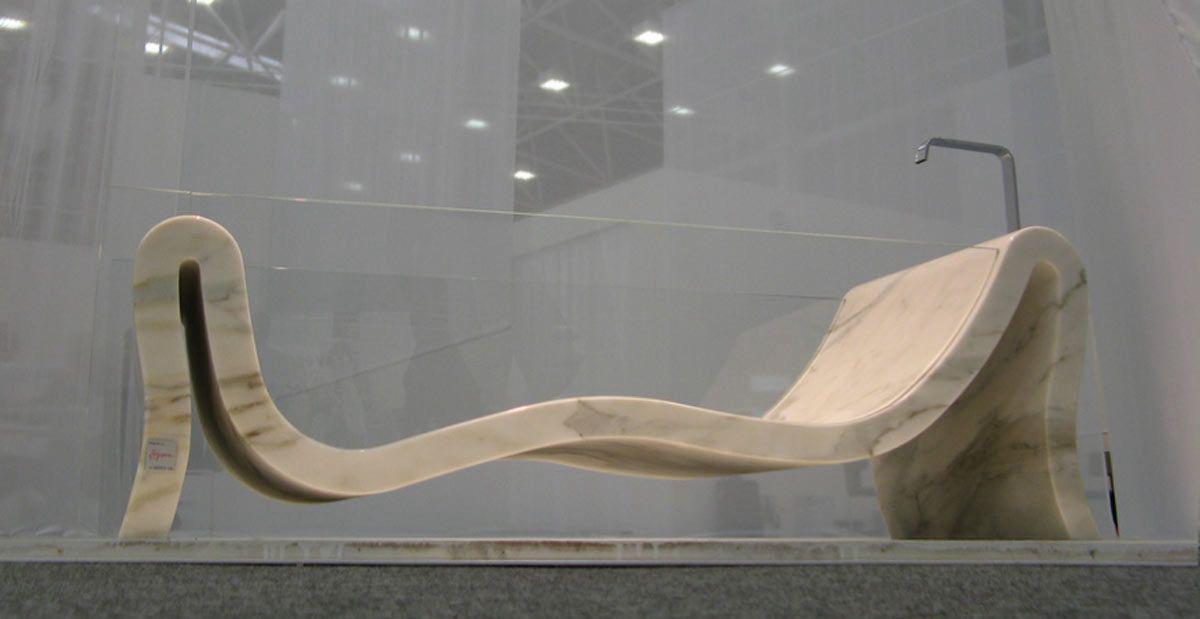

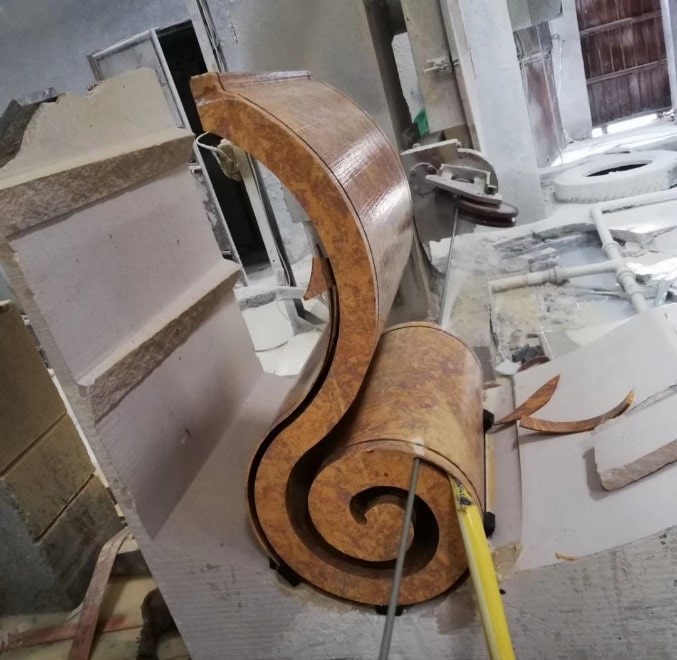

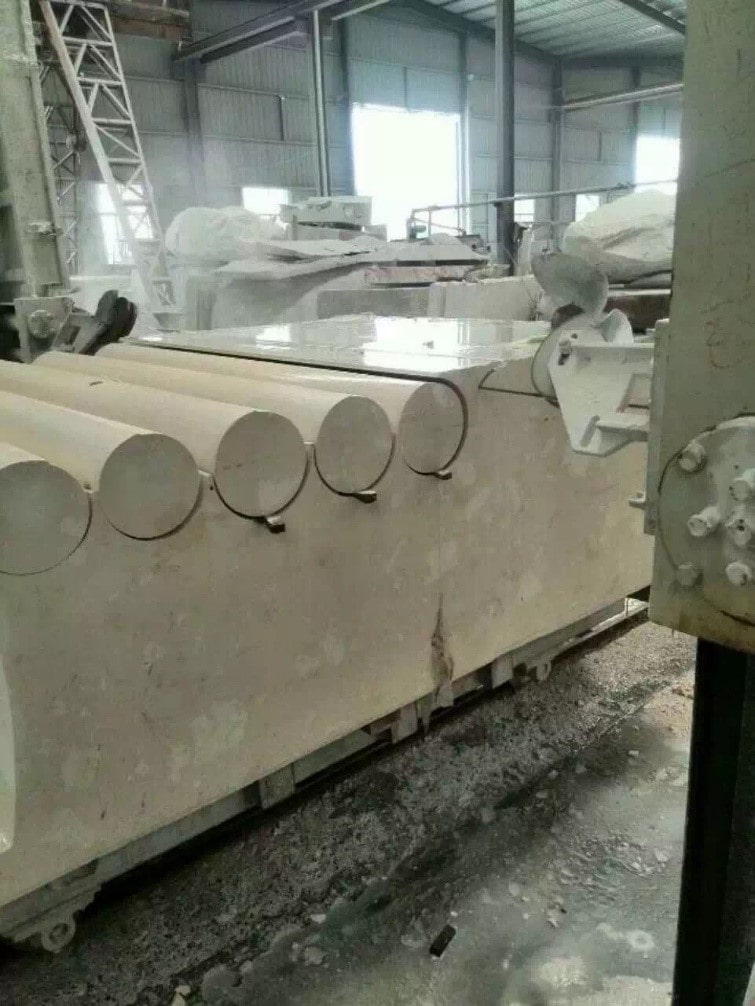

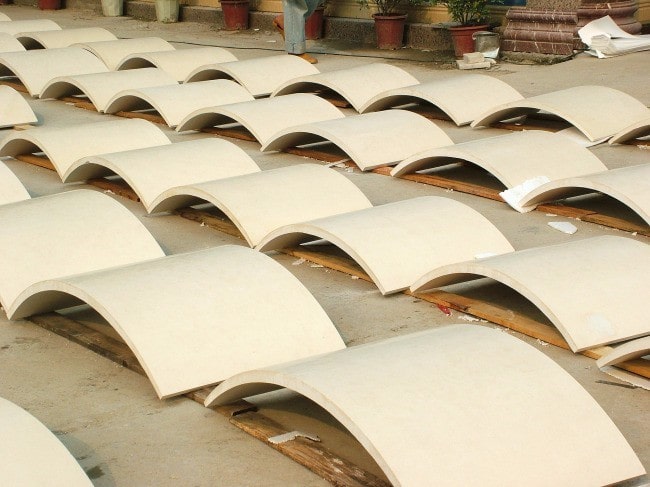

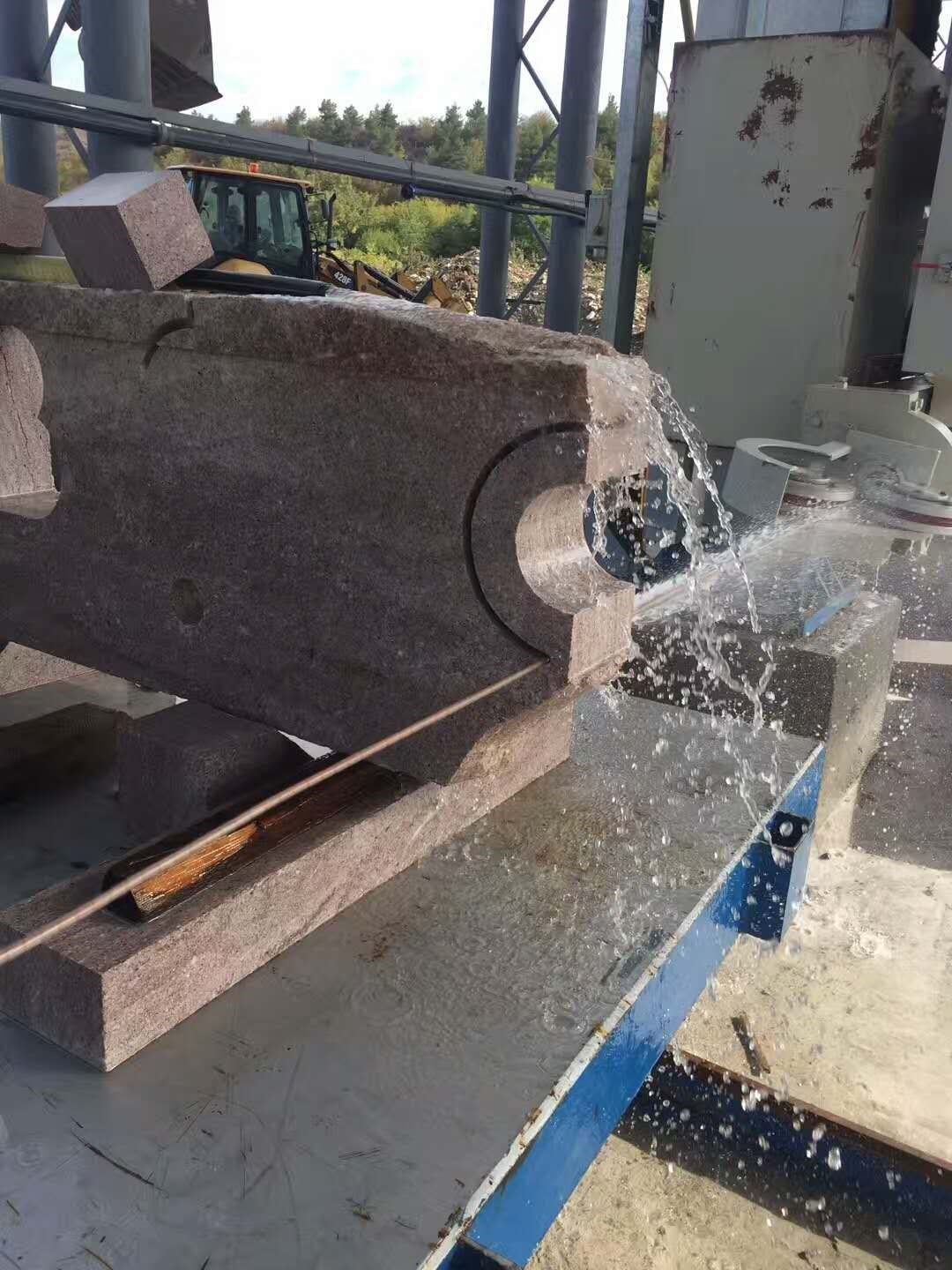

It has CNC control, Four-Axis linkage, which can process the circular stone slab, sculpture , artifacts , numeral , letter, English characters and other designed shapes.
It has heavy load bearing structure & adjusted the balance by the rollers , with less friction and higher precision.
The left and right frame are synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the combination of both lead screw and double nuts.
Cantilever part , lead screw & pole adjust the distance of guide wheel . guide wheel is controlled by CNC controller .
There has automatic alarm and memory function if wire broken
Balancing aluminum wheel diameter ( 1590mm ) . fly wheel slide through slide & hydraulic oil pump control rope tension

*Max. Processing Size*	*3000 x 3000 x 1500 MM*
*Trolley Size*	*1400 x 2500 MM*
*Wire Speed*	*0 – 50 M/Sec*
*Main Motor*	*15 HP*
**Overall Dimension [LWH]**	*8900 x 6300 x 3900 MM*
*Gross Weight*	*8000 Kg*
*Water Consumption*	*4 M³ / H*
*Rotary Trolley Size [ With Rotary Worktable ( Optional ) ]*	*1600 x 2500 MM*
*Heavy Duty , Exclusive Machine With Local Service Support And Tools Support*
