Disk & Brick Line Polisher Machine Manufacturer in Rajasthan, India

THE “CHOICE OF CHAMPIONS”

TURBO Slab Polisher

TURBO LINE POLISHING MACHINE

The line polishing machine for granite slab, options between resin disc grinding head and AAA Grade high efficiency
PLC programmable control system, through the LCD touch-screen operation with machine error notification and it has automatic lubrication system
using auto size sensor for detection of the size of the stone & using the auto sensor for the detection of thickness of the stone for automatic lifting of the head
The spindle uses advanced ITALIAN type of technology for the up & down movement & rotating movement & it has up & down adjustable speed also
The conveyor and cross beam are equipped with encoder system for speed control & accuracy
Central lubrication system, for all moving parts and bearings are giving a good lubrication effect
The machine moving parts using a special durable materials & having cast iron cross beam ~ increases the STABILITY , PRECISION , EFFICIENCY & frame made from 304 stainless steel makes machine rigid , superior , rust resistance giving a steady performance

Disk head For Granite

TURBO Slab Polisher

Technical Parameters

Disk head For Granite

*Name*	*MATE – 10C*
*No. Of Heads*	*10 Head*
*Working Thickness*	*10 – 50 MM*
*Belt Motor Speed*	*0 – 3 M/ Min*
*Spindle Motor Power*	*10 HP*
*Total Power*	*117 HP*
*Water Consumption*	*12 M*³/H
*Overall Dimension*	*6950 x 2300 x 2600 MM*

*Name*	*MATE – 12C*
*No. Of Head*	*12 Head*
*Working Thickness*	*10 – 50 MM*
*Belt Motor Speed*	*0 – 3 M/Min*
*Spindle Motor Speed*	*10 HP*
*Total Power*	*137 HP*
*Water Consumption*	*14 M*³/H
*Overall Dimension*	*7710 x 2300 x 2600 MM*

*Name*	*MATE – 16C*
*No. Of Head*	*16 Head*
*Working Thickness*	*600 – 2100 MM*
*Belt Motor Speed*	*0 – 3 M/Min*
*Spindle Motor Power*	*10 HP*
*Total Power*	*178 HP*
*Water Consumption*	*16 M*³/H
*Overall Dimension*	*9320 x 2300 x 2600 MM*

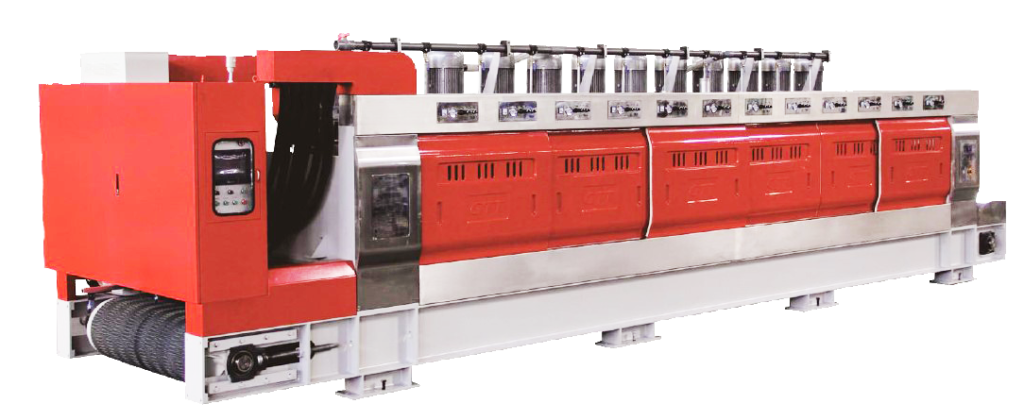

Fickert Head For Granite & Marble

TURBO Slab Polisher

Technical Parameters

Fickert Head For Granite & Marble

*Name*	*TWINS – 12C*
*No. Of Head*	*12 Head*
*Working Thickness*	*10 – 50 MM*
*Belt Motor Speed*	*0 – 3000 MM/Min*
*Spindle Motor Power*	*15 HP*
*Total Power*	*205 HP*
*Water Consumption*	*12 M*³/H
*Overall Dimension*	*9530 x 2500 x 2600 MM*

*Name*	*TWINS – 16C*
*No. Of Head*	*16 Head*
*Working Thickness*	*10 – 50 MM*
*Belt Motor Speed*	0- *3000 MM/Min*
*Spindle Motor Power*	*15 HP*
*Total Power*	*268 HP*
*Water Consumption*	*19 M*³/H
*Overall Dimension*	*11530 x 2500 x 2600 MM*

Frankfurt Head For Marble

TURBO Slab Polisher

Technical Parameters

Frankfurt Head For Marble

*Name*	*TCPM – 12C*
*No. Of Head*	*12 Head*
*Working Thickness*	*10 – 60 MM*
*Belt Motor Speed*	*0 – 3000 MM/Min*
*Head Dia.*	*400 / 500 MM [ 5/7 Bricks ]*
*Each Motor Power*	*12 HP / 15 HP*
*Total Power*	*169 HP / 205 HP*
*Water Consumption*	*14 M*³/H
*Overall Dimension*	*8830 x 3100 x 2600 MM*

*Name*	*TCPM – 16C*
*No. Of Head*	*16 Head*
*Working Thickness*	*10- 60 MM*
*Belt Motor Speed*	*0 – 3000 MM/Min*
*Head Dia.*	*400/500 MM [ 5/7 Bricks ]*
*Each Motor Power*	*12 HP / 15 HP*
*Total Power*	*217 HP / 265 HP*
*Water Consumption*	*18 M*³/H
*Overall Dimension*	*9500 x 3100 x 2600 MM*
