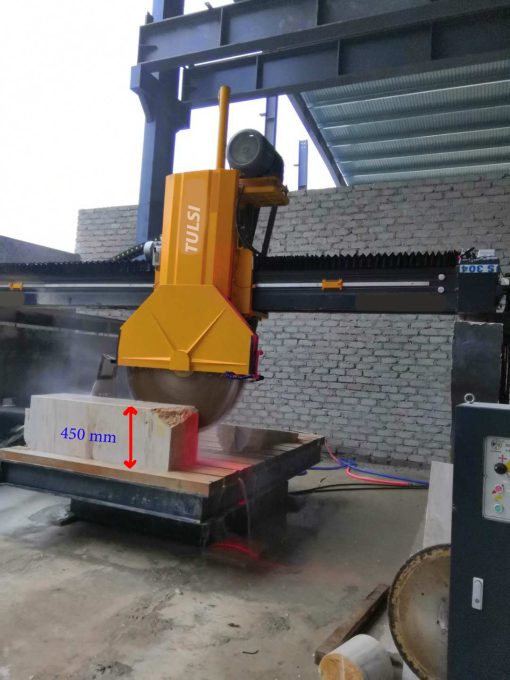

Designed with heavy duty structure, adopting PLC system and Human-machine interface, English operation language and infrared laser device, equipped with ultra-high precision rotary encoder, using inverter to control left-right feeding, adjusting the speed according to stone material, using hydraulic lifting system which equipped through solid pillars, Thus the whole machine is featured as high cutting efficiency, high stability, easy – operating, specially cutting shaped stone products, tombstone and curb stone.
| Parameters | Unit | TURBO – 1200 |
| Blade Dia. | mm | Ф 600 – ф 1200 |
| Max. Processing Size (L*W*H) | mm | 3200 * 2000 * 450 |
| Dimension Of Worktable (L*W) | mm | 3200 * 2000 |
| Max. lifting Stroke | mm | 760 |
| Worktable Rotating Degree | ° | 90°/ 360° |
| Main Motor | kw | 22 |
| Gross Motor | kw | 29 |
| Water Consumption | M3/h | 6 |
| Dimension (L*W*H) | mm | 6400 * 4800 * 4400 |
