4 Axis & 5 Axis CNC Machine Manufacturer In Rajasthan, India

THE “CHOICE OF CHAMPIONS”

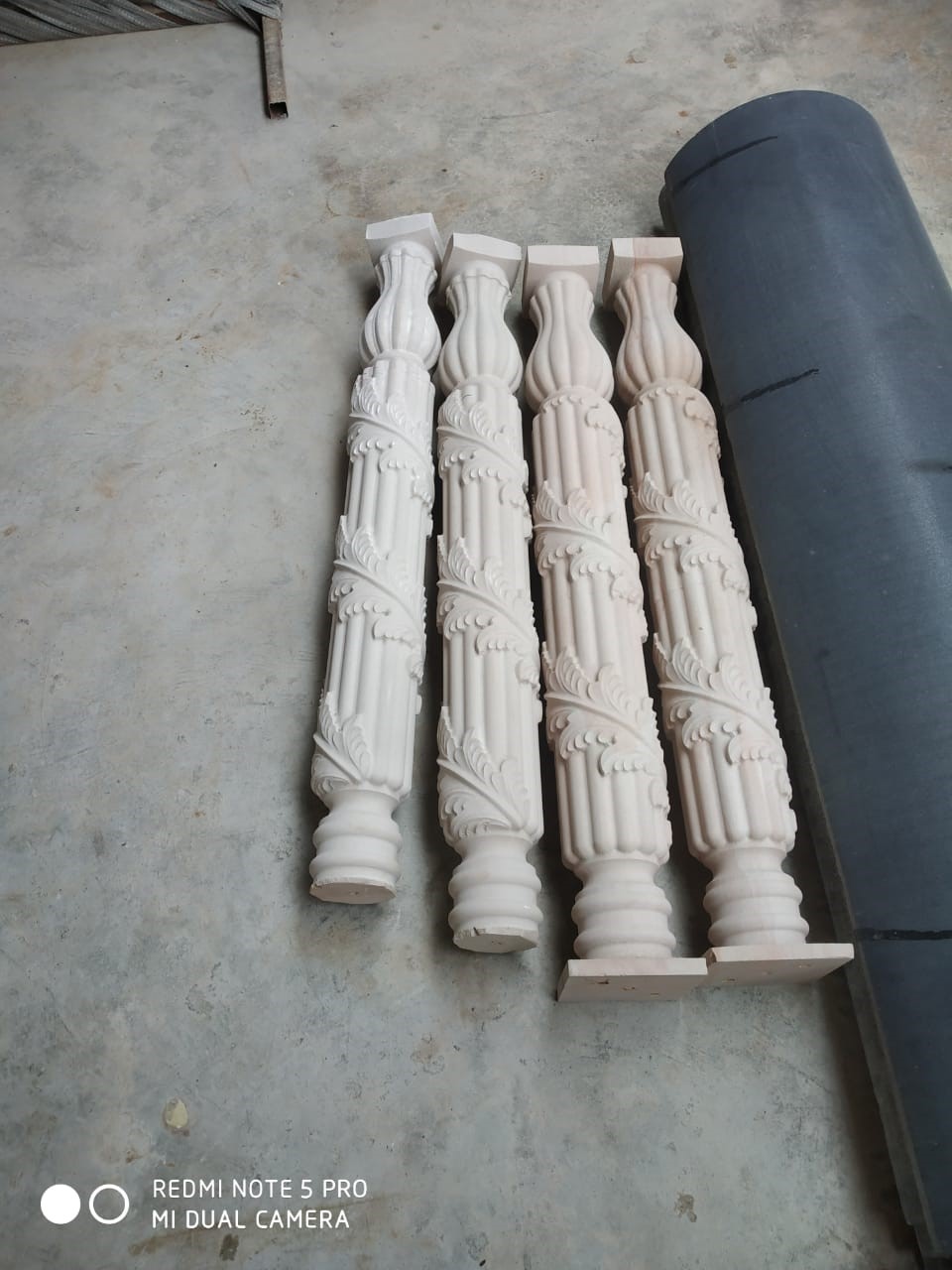

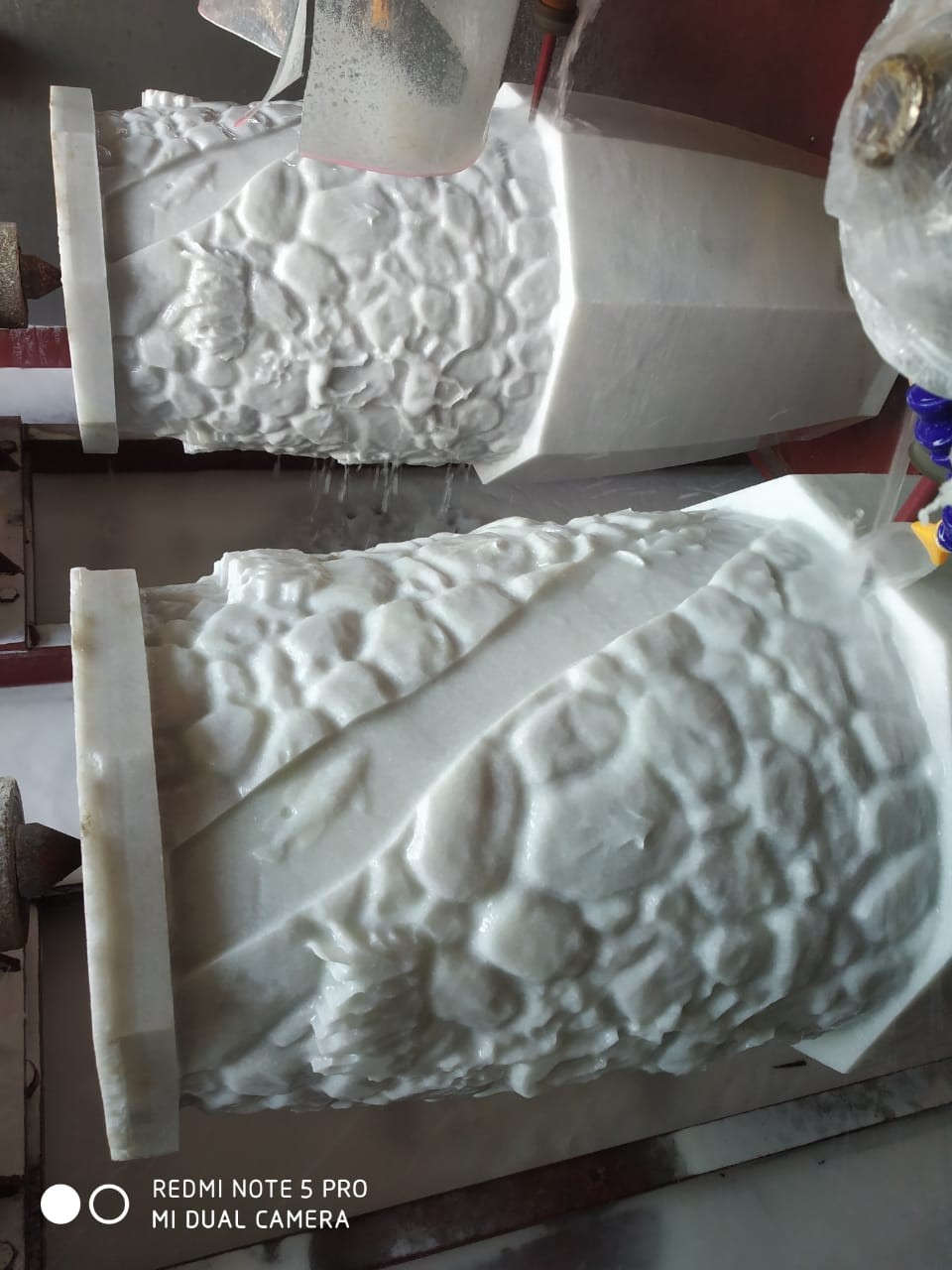

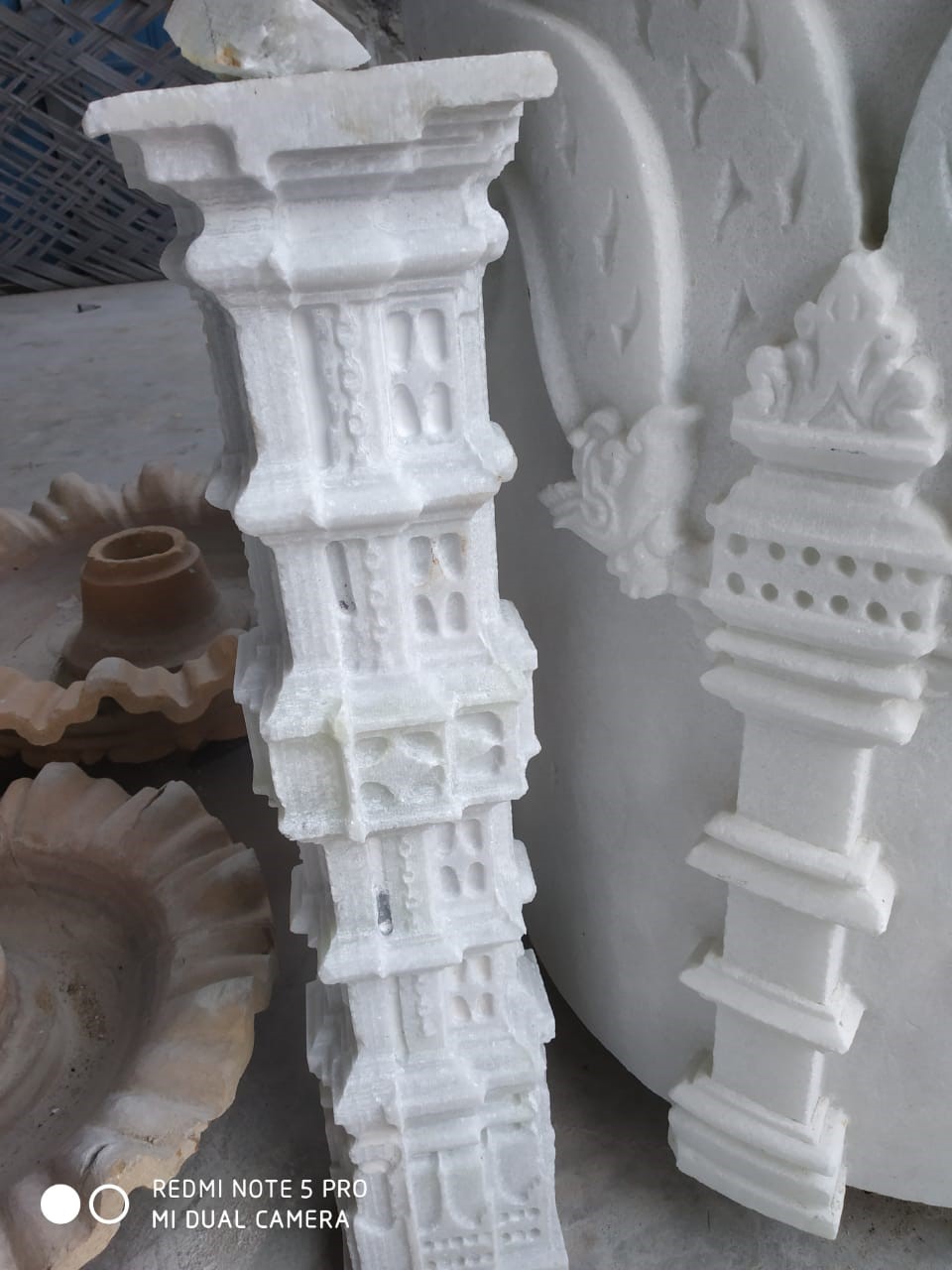

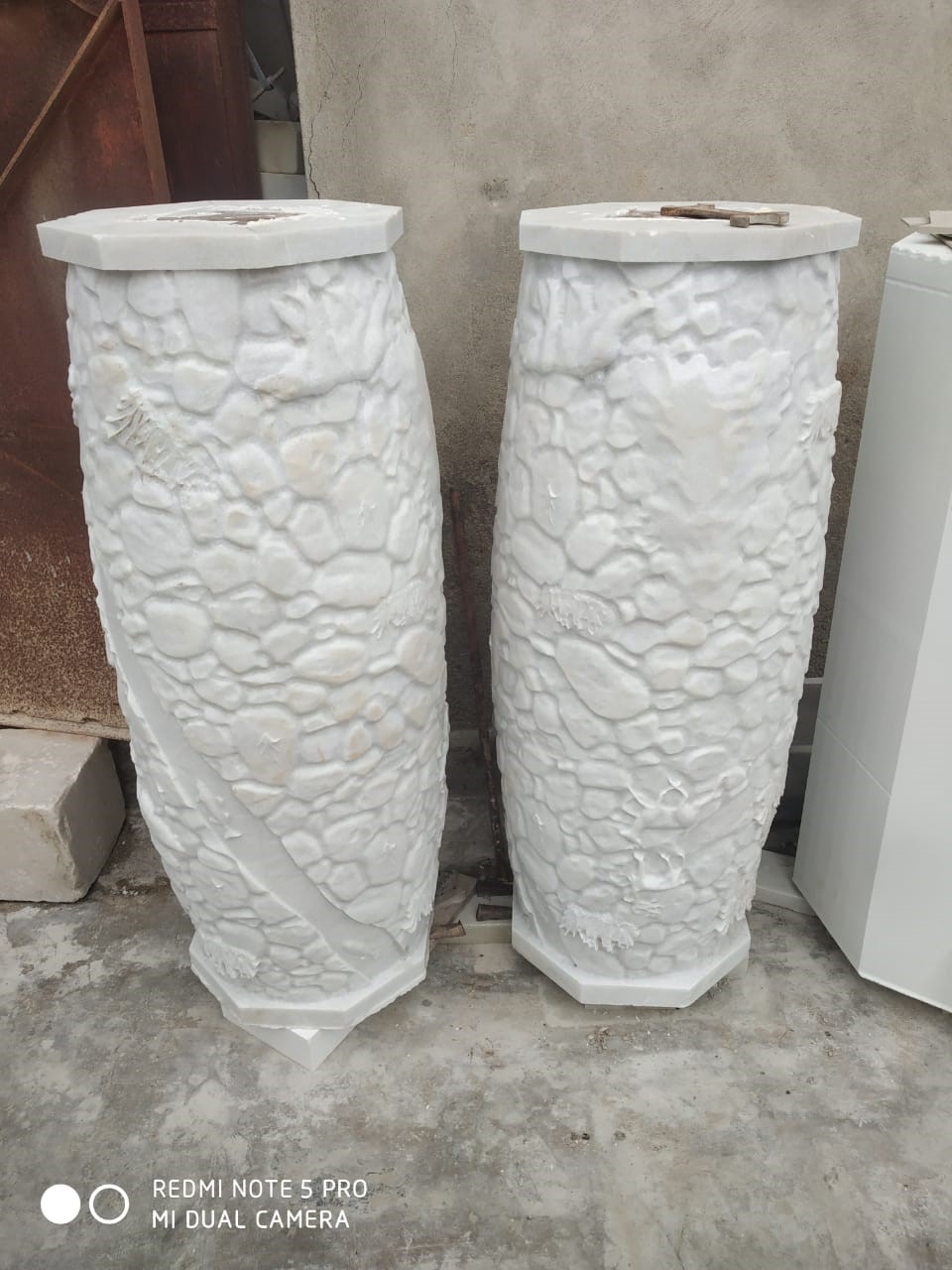

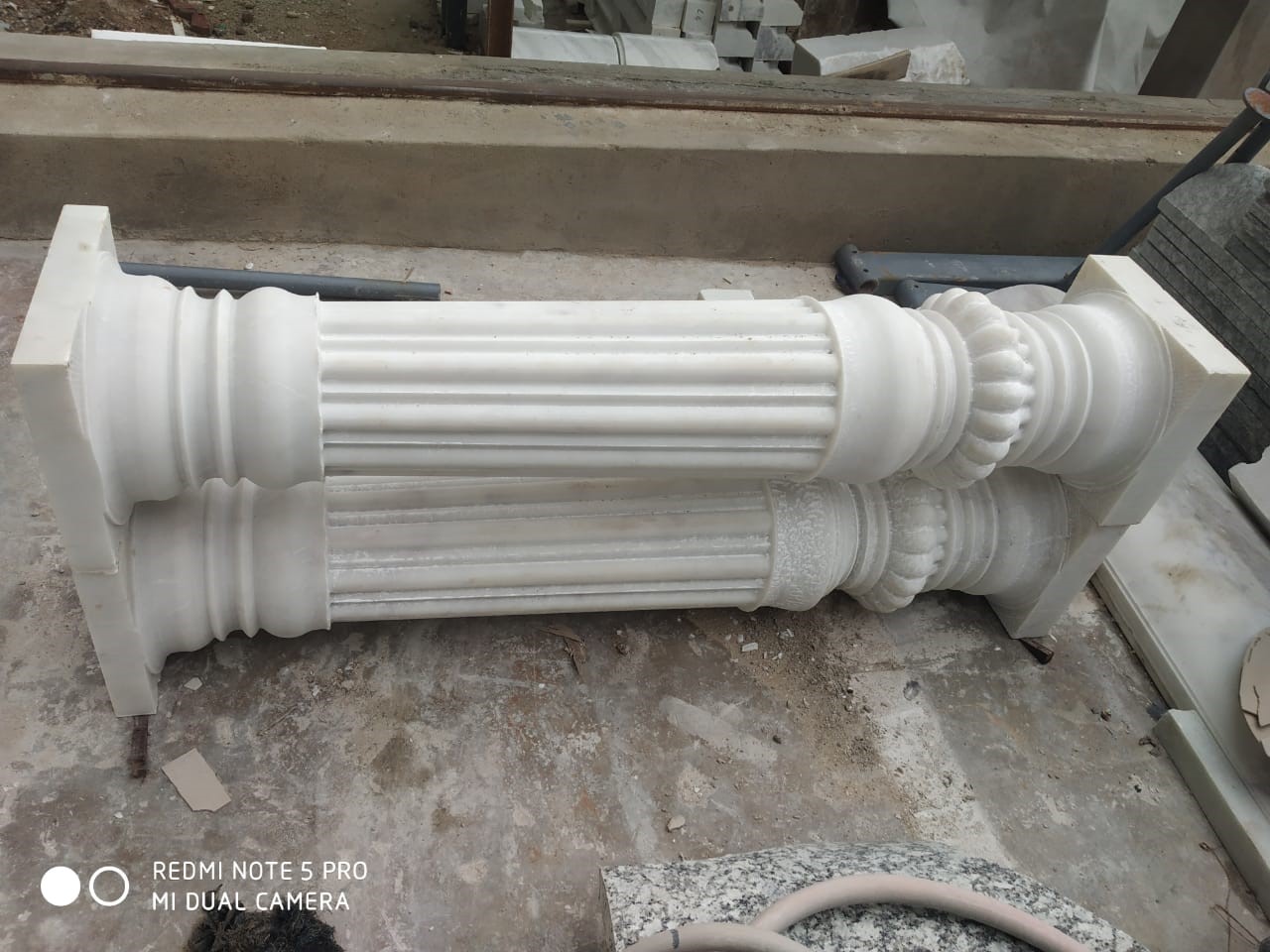

This Machine Has a Lathe Type heavy Duty Structure. Best Machine For Engraving , Shaping , profiling Of The Pillar

*Processing Size*	*Relife Engraving : 1500 x 2500 x 500 MM* *Cylindrical : ( L ) 3000 MM , Circle :* *Ø 600 x 2 MM*
**Machine Size [ LWH ]**	*2300 x 5200 x 2350 MM*
*System*	*Weihong , NK 300*
*Spindle*	*7.5 Kw Spindle , Saw Blade Motor 6.5 Kw*
*The Inverter*	*10 HP , Delta Inverter*
*Motor*	*Dorna Servo , 1.2 Kw , Z Axis With Brake*
*Guide*	*X/Y Taiwan , Hivin , 30 MM*
*Screw*	*2505 , PMI Screw*
*The Tooth Row*	*1.5 M*
*Refrigeration System*	*CW – 3000*
*PVC*	*15 MM*
*Lubrication System*	*Automatic Oil Filling System*
*Color*	*Bed White , Sheet Metal Red*
*The Transmission Way*	*The Reducer*
*Lathe Bed*	*Heavy Duty Square Pipe , Welding Bed , Stainless Steel Sink , Stainless Steel Plate*
*Structure*	*Spindle & Motor Is On The Same Side*
*Spindle Speed*	*18000 – 24000 ROM*
*Dust Control Device*	*Dust Cloth*
*Voltage*	*AC380V / 50Hz*
*Instruction*	**G-Code,u00,mmg,plt***
